Low Power Variable Optics

The Swampfox Tomahawk is hands down the best value LPVO on the market today. This optic provides clarity, durability and accuracy that is unrivaled by any other Low Power Variable Optic at similar price points. Sporting a Second Focal Plane (SFP) glass etched illuminated reticle designed for dynamic shooting, and a throw lever for rapid magnification adjustment, this highly versatile scope is ideal for 2 & 3-gun competitions. Choose between three different reticle options: the Guerrilla Dot BDC™, Guerrilla Cross MOA™, and the Spear Duplex™.

The selected product combination is currently unavailable.
quantity
add to wishlist

SEEING IS BELIEVING​​

The affordably priced, highly versatile, crystal clear Low Powered Variable Optic you have been waiting for is here. Meet the Tomahawk.

RAPID TARGET ACQUISITION

Both the BDC and MOA illuminated etched reticles are designed to instantly acquire your target at short and medium range from a preset 50/200 yard battle sight zero.

CLOSE QUARTER BATTLE

With true 1x optical performance, this rifle scope and its reticles are designed to act like a red dot sight at short range. Keep both eyes wide open and maintain your focus on the target.

LONG RANGE PRECISION

Crank up the magnification and have confidence in those long range shots with the Tomahawk's ultra bright sight picture. Both illuminated, glass etched reticles incorporate ranging and long range holdover aiming cues.

SECOND FOCAL PLANE (SFP)

The larger reticle vs. the target size at lower magnifications afforded by the SFP is ideal for 3-Gun competition or tactical shooting, allowing you to find and hit those short range targets faster.

INCLUDED THROW LEVER

Because your holdovers are only accurate at the highest magnification, the included throw lever allows you to crank up or slam down the magnification in a split second.

1-8x24 with Guerrilla Dot BDC

Superior Optical Performance

The Tomahawk series smashes the myth that you need to spend half your paycheck to get clear, good quality glass.

BRIGHT AND CLEAR SIGHT PICTURE

The Tomahawk boasts edge to edge optical clarity throughout the entire magnification range.

TRUE 1X PERFORMANCE

Impressive true 1x magnification. An instant 1x sight picture gets you on target faster, without having to adjust your eyes' focus.

QUALITY GLASS, PREMIUM COATINGS

Containing rare earth metals, the glass is optimized for maximum resolution and brightness. The lenses are fully multi-coated for maximum light transmission and anti-reflection, and sports extra specialty coatings for anti-fog, anti-scratch, and hydrophobic performance.

AN EYE BOX WITH LATITUDE

Rifle scopes at this price range often have a limited margin of error for eye placement, creating ellipses and blocking the full sight picture unless your eye is positioned perfectly. The Tomahawk widens this margin of error, providing more speed and flexibility in acquiring your sight picture at full magnification.

FAST FOCUS

Everybody’s eyes are different. The fast focus adjustable ocular allows for micro adjustments to keep the reticle sharp at all times, whether illumination is on or off.

EYE RELIEF & FIELD OF VIEW

The optic system is a finely tuned machine, allowing for generous eye relief while maximizing field of view. You won’t get fatigued looking through this scope.

Zero Reset Turrets

Zero reset turrets provide more flexibility and just work better than most zero-lock turret systems. Zero the scope to your preferences and adjust your dial markings to mark your ‘zero’. Always know where your zero is without counting clicks. This system works great for shooters who prefer to dial for windage and elevation. For shooters using the reticle holdovers, set your zero and leave the turrets alone- and if the turret somehow gets bumped, simply dial it back to zero with a quick twist.

Glass Etched Illuminated Reticles

The 11 position illumination turret provides crisp reticle contrast for both low light and bright daytime conditions.

GUERRILLA DOT BDC

Calibrated for the AR platform with a 16” barrel and using 5.56 NATO 55gr FMJ, this reticle does it all. It has a 1.3 MOA quick strike red dot, an 18” outer circle for quicker strikes at short range, holdovers out to 600 yards, and ranging capabilities for plinker plates and humanoid target shoulders out to 500 yards.

GUERRILLA CROSS MOA

This reticle combines quick strike capabilities as well as standard MOA hash marks for windage and elevation adjustments. It features a center cross with a 0.5 MOA center aiming point at the cross intersection, and an 18” outer illuminated circle. Use the red illumination markings for quick strike capabilities, and the black markings for standard MOA ranging and holdover calculations.

SPEAR DUPLEX

The Spear Duplex reticle is a simple, clean crosshair surrounding a center dot that can be illuminated in red. Fast and uncluttered, Spear Duplex offers no ranging, bullet drop compensation, or other advanced features. Zero in so that the center dot matches the point of impact at your preferred distance, and enjoy the simple, instinctive shooting experience.

Takes a Beating, Holds Zero

Ever have that feeling that you need to treat your gun with kid’s gloves because you are worried about damaging the glass? You can shed that mindset with Swampfox. The Tomahawk is shock resistant to 1,100 Gs of shock, waterproof, sand proof, and pretty much gorilla proof.

Magnification 1-4x
Tube Diameter 30mm
Objective Lens Diameter 24mm
Exit Pupil (mm) 5.9 @4Xmm (1X-4X)
Eye Relief (in) 3.7-3.8" (1X-4X)
FOV @ 100 Yards (ft) 95.1-23.6' (1X-4X)
Click Value 1/2 MOA
Parallax Setting 50 yds
Travel Per Rotation  60 Clicks/ 30 MOA
Max Elevation Adjustment 100 MOA
Max Windage Adjustment 100 MOA
Lens Coating Fully Multi-Coated/ Anti-fog/Hydrophobic
Illumination 11 Position Illumination turret
Battery Side-mounted CR2032 Battery
Reticle  BDC & MOA Glass Etched Illuminated
Magnification Required for Reticle Accuracy 4x
Fast Focus Diopter Yes, -2 to +2
Turret Style Tactical Turrets with Zero Reset
Length 9.79"
Weight 17.5oz
Waterproof Rating IPX7
Impact Resistance 1,100 G Forces
Magnification 1-6x
Tube Diameter 30mm
Objective Lens Diameter 24mm
Exit Pupil (mm) 3.4 @6Xmm (1X-6X)
Eye Relief (in) 3.7-3.8" (1X-6X)
FOV @ 100 Yards (ft) 108.2-17.7' (1X-64X)
Click Value 1/2 MOA
Parallax Setting 50 yds
Travel Per Rotation 60 Clicks/ 30 MOA
Max Elevation Adjustment 100 MOA
Max Windage Adjustment 100 MOA
Lens Coating Fully Multi-Coated/ Anti-fog/Hydrophobic
Illumination 11 Position Illumination turret
Battery Side-mounted CR2032 Battery
Reticle BDC & MOA Glass Etched Illuminated
Magnification Required for Reticle Accuracy 6x
Fast Focus Diopter Yes, -2 to +2
Turret Style Tactical Turrets with Zero Reset
Length 10.5"
Weight 18.6 oz
Waterproof Rating IPX7
Impact Resistance 1,100 G Forces
Magnification 1-8x
Tube Diameter 30mm
Objective Lens Diameter 24mm
Exit Pupil (mm) 8.5-3.0mm (1X-8X)
Eye Relief (in) 3.7"-3.8""(1X-8X)
FOV @ 100 Yards (ft) 124.2-15.6' (1X-8X)
Click Value 1/2 MOA
Parallax Setting 50 yds
Travel Per Rotation 60 Clicks/ 30 MOA
Max Elevation Adjustment 100 MOA
Max Windage Adjustment 100 MOA
Lens Coating Fully Multi-Coated/ Anti-fog/Hydrophobic
Illumination 11 Position Illumination Turret
Battery Side-mounted CR2032 Battery
Reticle BDC & MOA Glass Etched Illuminated
Magnification Required for Reticle Accuracy 8x
Fast Focus Diopter Yes, -2 to +2
Turret Style Tactical Turrets with Zero Reset
Length 10.7"
Weight 19.3 oz
Waterproof Rating IPX7
Impact Resistance 1,100 G Forces

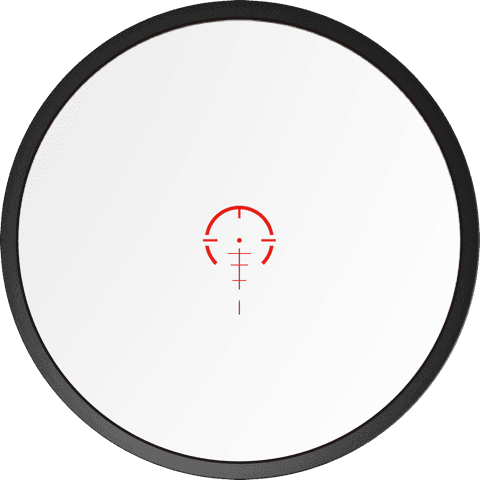

The Guerilla Dot BDC is highly versatile, capable of delivering rapid target acquisition at true 1x power, while also providing various holdovers for mid to long range shots.

  • Lake City/Federal 5.56 NATO
  • 55gr FMJ/XM193
  • Ballistic Coefficient: .243
  • Muzzle Velocity: 3101
  • Barrel Length: 16”1

Also includes holdovers for 7.62 NATO/.308 Win. Based on the following:

  • Hornady .308 WIN 155gr
  • Ballistic Coefficient: .435
  • Muzzle Velocity: 2,865 fps

For rapid plinker plate strikes

Inner Cross Bar alignment represents 12” diameter @ 100yds

Shoulder Ranging Bars

  DISTANCE
(YD)
TARGET WIDTH
(IN)
HOLDOVER WIDTH
(MOA)
100 19" 20
300 19" 6.35
400 19" 4.77
500 19" 3.82

The Guerrilla Cross MOA hybrid reticle is designed for rapid target acquisition in Close Quarter Battle as well as precision shooting for longer shots.

3 QUICK STRIKE AIMPOINTS

Need for speed is the name of the game in Close Quarter Battle. Focus on the illuminated portions of the Guerrilla Cross reticle when you need to strike fast.

AIM BIG FOR LIGHTNING SPEED

The red illuminated circle has an outer diameter of 19 MOA, and an inner diameter of 16 MOA. For targets up to 200 yards, when speed is critical and you just need a hit rather than precise placement, aim big and frame your target in the horseshoe and fire.

BE FAST & ACCURATE ENOUGH

The center illuminated cross has a total diameter of 4 MOA, cut in 2 MOA increments east to west, and from north to south. If speed is the still the name of the game but a bit more accuracy is required, focus on placing the entire cross on your target as you squeeze off your kill shot.

PRECISE BUT QUICK TOO

The center illuminated cross is comprised of 0,5 MOA thick lines, providing a precise crosshair that won't block your view on small targets. The center crosshair allows you to achieve tight groupings from 50-200 yards.

RAPID RANGING

Inner bars represent 12 MOA, equivalent to a 12" Plinker plate @ 100 yards

A 12" plinker plate @ 200 yards, equivalent to 6 MOA

Man's shoulders [19"/20") @ 100 yards, equivalent to 20 MOA

Man's shoulders @ 500 yards, equivalent to 4 MOA

STANDARD MOA RANGING

In order to range targets or objects with the Guerrilla MOA, the shooter needs to know how to use the MOA Ranging formula:

Target Size (inches) x 95.5"

Image Size in MOA

= Range in Yards


In order to obtain accurate range, you need to know the size of the target. Using either the vertical or horizontal hash marks, measure the MOA of the object that has a known size. The reticle has various points of reference to measure MOA, including the black hash marks which are all indicated in increments of 2 MOA.

Example #1: Assuming this combatant is 6 feet [72 inches) tall, and his body length comprises 15 MOA in your reticle, how far away is he?

72 x 95.5"

15 MOA

= 460 Yards


Looking for the advantages of a Low Power Variable Scope but don’t want the complexities of a holdover style reticle? Spear Duplex is your answer. The Spear Duplex reticle is a simple, clean crosshair surrounding a center dot that can be illuminated in red. Fast and uncluttered, Spear Duplex offers no ranging, bullet drop compensation, or other advanced features. Zero in so that the center dot matches the point of impact at your preferred distance, and enjoy the simple, instinctive shooting experience.

  • Scope
  • Throw Lever
  • Wrench for throw lever
  • Flip Up Lens Caps
  • Scope Cloth
  • Battery
  • Product Manual
  • Reticle Manual
