Eyes in the Dark: Vietnam-Era Scopes and the Birth of Night Vision

There is a good chance you have never thought much about what a rifle scope looked like in 1967. Why would you? You have a Picatinny rail, a quality first focal plane optic, and a ballistic turret that talks directly to a dope card on your phone. The whole problem feels solved.

But the gear you are running right now did not come from nowhere. Every BDC reticle, every auto-gating Gen 3 tube, every side focus knob exists because of decisions made under fire in a triple-canopy jungle half a century ago. Vietnam was not just a military conflict. For precision optics and night vision technology, it was the crucible.

This is the story of how American forces went from squinting through fogged glass in a monsoon to owning the night entirely.

Before we talk about the glass, you have to understand what the glass was up against.

Vietnam's triple-canopy jungle could block direct sunlight completely, dropping the forest floor into permanent twilight. Line-of-sight in dense jungle measured in dozens of meters on a good day. The monsoon dumped relentless rain. Humidity sat at 100 percent. Any optic not specifically engineered for those conditions was going to fail, and the environment did not give you much time to figure that out.

A 1968 Army evaluation of sniper equipment in-theater, Project ACG-87/67I, put numbers to it: more than 50 percent of all telescopic sights used during the evaluation suffered catastrophic internal moisture accumulation that rendered the optic combat-ineffective. Half the scopes were fogging out. This was not cheap glass either. Commercial hunting scopes with premium pedigrees were failing because nobody had designed them to survive that environment. They were built for elk season in Wyoming, not monsoon season in Quang Tri.

The legacy optics inherited from Korea did not help. The M84 telescope, a 2.5x optic originally paired with the M1D Garand, was barely adequate for identifying a target in clean conditions. In reduced jungle visibility it was effectively useless past a few hundred meters. The military needed something built for this specific fight.

While the Marines were adapting commercial hunting gear, the Army was building something from scratch.

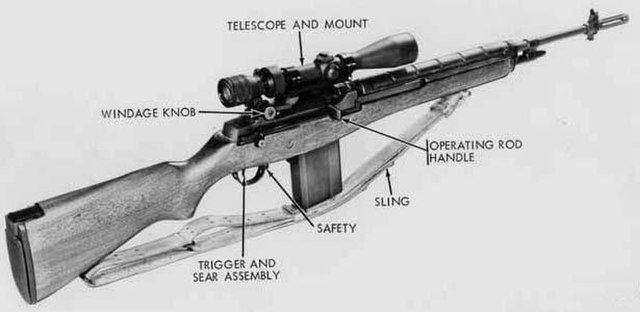

The Army's sniper program had been essentially abandoned after Korea. By the mid-1960s, with VC and NVA snipers exacting a growing toll in the jungle, the Limited Warfare Laboratory at Fort Benning was tasked with developing a dedicated sniper platform fast. The rifle they selected was the XM21, a National Match-accurized M14 chambered in 7.62x51mm. The optic they developed for it was unlike anything that had existed before.

2nd Lieutenant James Leatherwood, a Texan and avid shooter who came up through ROTC at Tarleton State University, had identified the actual bottleneck. Teaching a recruit the full sniper curriculum — range estimation formulas, atmospheric adjustments, bullet drop holdover — took months. The theater needed trained snipers faster than that pipeline could produce them. Leatherwood's answer was to offload the cognitive work onto the optic itself.

The result was the Automatic Ranging and Trajectory scope, the ART. The core mechanism was a precisely machined ballistic cam attached directly to the magnification zoom ring, cut to match the exact trajectory of the standard M118 7.62mm NATO Match load. The scope sat in a hinged mounting base that allowed the rear of the tube to pivot vertically.

The doctrine Leatherwood built around it was called FAST: Frame, Aim, Shoot Technique. The shooter would look through the scope and turn the magnification ring until the target filled the ranging bracket. As the ring rotated, the cam physically forced the rear of the scope up or down on the hinged base, changing the elevation angle of the entire optic relative to the bore. Framing the target in the bracket automatically corrected for bullet drop at that range.

The sniper did not read a yardage scale. He did not dial an elevation turret. He framed the target and fired. The mechanical linkage handled the rest.

The 9th Infantry Division's Sniper School in the Cha Rang Valley compressed its training pipeline to three weeks using the XM21 and ART. Soldiers with limited formal marksmanship background were producing first-round hits at 900 meters. The ART was eventually refined into the ART II, which became the Army's standard designated sniper optic and stayed in that role well after the war ended.

The daylight optics problem was hard. The night problem was on a different level entirely.

The Viet Cong owned the night. They moved supplies along the Ho Chi Minh trail under cover of darkness. They initiated coordinated sapper attacks on fortified fire support bases at 2 a.m. The jungle's absolute darkness negated American technological and numerical advantages as completely as any surface-to-air missile.

The only night vision gear available at the start of the conflict were Generation 0 active infrared devices left over from World War II. The Sniperscope and Snooperscope used a massive infrared spotlight to illuminate the target and a converter tube to make that invisible IR visible to the shooter. The flaw was obvious to anyone who thought about it for a moment: projecting an IR spotlight in a hostile environment is functionally identical to turning on a flashlight. Anyone else on the battlefield with basic IR detection equipment could see you coming from hundreds of meters away.

The breakthrough was Generation 1 passive image intensification. Gen 1 devices captured ambient photons already present in the environment — moonlight, starlight, the atmospheric sky-glow that exists even on overcast nights — and amplified them. The physics: incoming photons hit a photocathode and convert to electrons, which are accelerated across a high-voltage vacuum and slammed into a phosphor screen to produce a visible green image. Chain three intensifier stages together in a cascading arrangement and you get roughly 1,000x amplification of available ambient light. No spotlight. No detectable signal.

The AN/PVS-1 came first, followed by the AN/PVS-2. Soldiers called them both the Starlight Scope. Development began in 1964, early units reached combat troops by 1967, and by 1969 they were widespread across the theater.

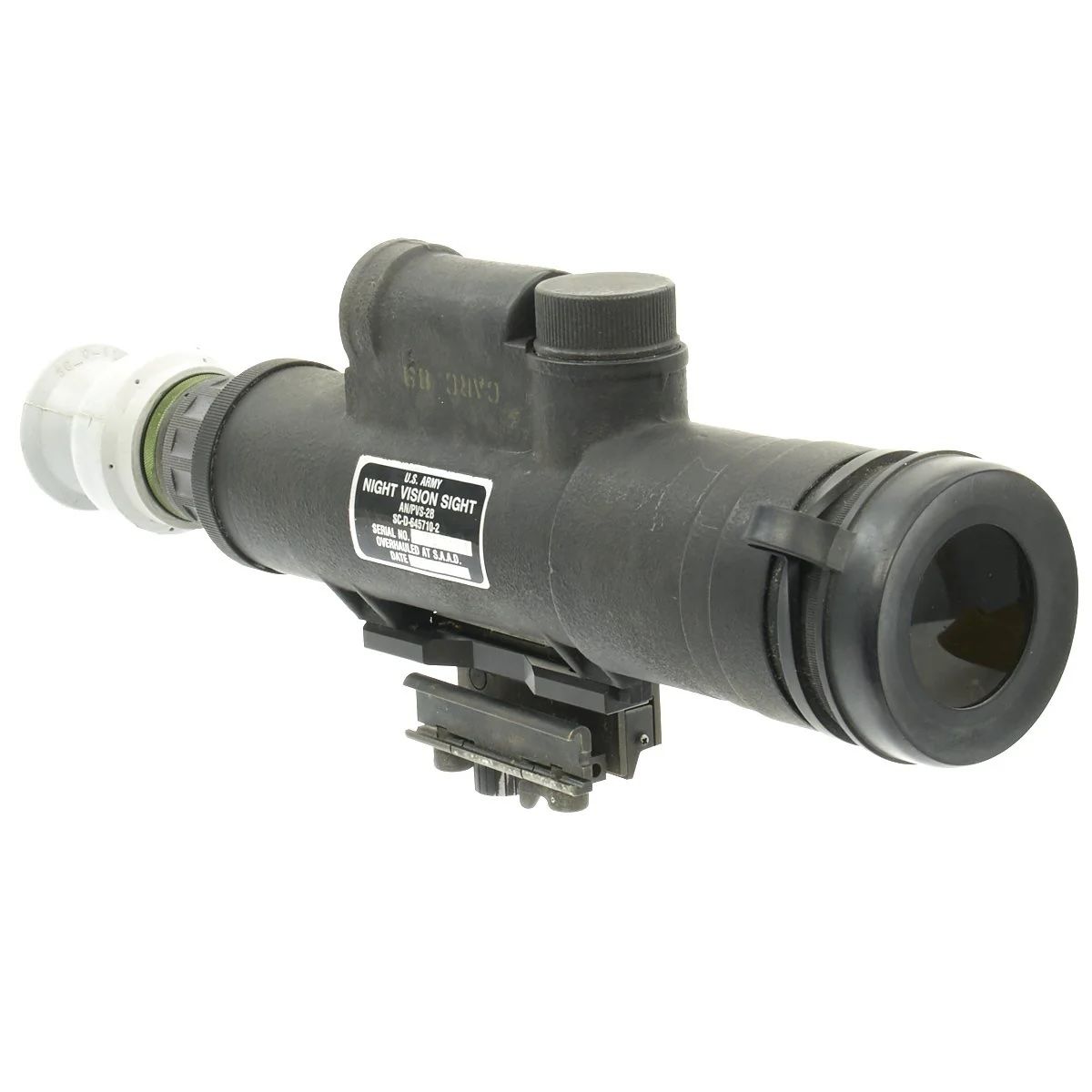

The AN/PVS-2 was not a small piece of kit. Six pounds. Fixed 4x magnification. Engraved, non-illuminated reticle. Zeroing the weapon did not involve adjusting internal crosshairs; the entire scope housing shifted on its mounting bracket to move point of impact. It mounted on the M14, M16, M60, M72 LAW, and M79 grenade launcher.

In the right situation it was devastating. Static base defense with a sentry scanning the tree line from a sandbagged observation post was exactly what the PVS-2 was built for. Post-action reports noted that the hyper-amplified ambient light caught the metallic sheen of enemy weapons, making armed combatants identifiable even when they were using civilians as cover.

The PVS-2 changed the ground fight at night. The military was also working on the air.

Army aviation units modified Bell UH-1H Hueys specifically for night interdiction over the Mekong Delta and the Ho Chi Minh trail. The platform was called the Nighthawk. In the cargo bay, an operator manned a massive AN/TVS-4 Night Observation Device — the 34-pound big brother of the PVS-2, built for long-range passive detection of movement and metallic glint in the darkness below. When the TVS-4 operator spotted a target, the crew activated an AN/VSS-3 Xenon searchlight that could project either blinding white light or invisible infrared depending on the mission. Then the door gunner opened up with a 7.62mm M134 Minigun.

Nighthawks operated in tandem with AH-1G Cobra gunships on missions the crews called "Firefly." Passive detection plus overwhelming firepower turned the airspace above the delta into a hunter-killer grid. The night that had been the enemy's most reliable tactical asset was being taken from them piece by piece.

The lessons from Vietnam were not subtle. The Gen 1 cascade tubes were too heavy, too fragile under fire, too dependent on batteries that were nearly impossible to source in the jungle, and they bloomed out every time someone fired a weapon nearby. Military engineers knew exactly what needed to change.

Generation 2 technology replaced the stacked cascade assembly with a single micro-channel plate — a thin glass wafer perforated with millions of microscopic channels, each angled slightly. Electrons from the photocathode pass through these channels and as they bounce off the channel walls, they knock loose secondary electrons in an exponential chain reaction. Same amplification, fraction of the size and weight. Gen 2 also introduced the S-25 photocathode, which offered substantially better light sensitivity across a broader spectral range than anything Gen 1 had used.

The AN/PVS-4, developed in 1975 and entering service in 1978, was the direct result of everything that had gone wrong with the PVS-2. Four pounds instead of six. Automatic Brightness Control and Bright Source Protection built in, which meant a soldier could fire an M16 on full auto with the PVS-4 mounted without destroying the tube or blinding himself. 32 line pairs per millimeter resolution. Detection ranges of 400 meters in starlight and 600 in moonlight. Modular enough that a single armorer could swap reticle cells to configure it for the M16, M60, M203, or M72 LAW.

The PVS-4 was still in frontline service through the Persian Gulf War. It turned night vision from a static defensive tool into something a rifleman could run aggressively on dismounted patrol.
