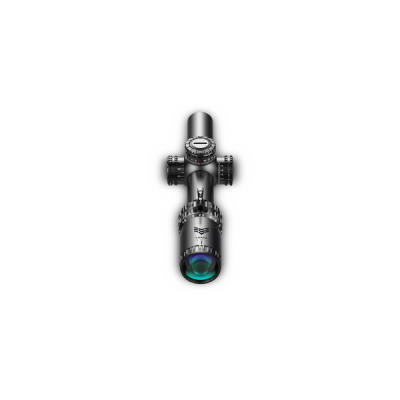

Low Power Variable Optics

The Swampfox Arrowhead LPVO series meets or exceeds every requirement for serious law enforcement and self-defense applications. Locking turrets require no tools to prevent unintentional adjustments. Arrowhead’s state-of-the-art optical design creates a brighter sight picture, a wider field of view, and excellent resolution. Choose from two Second Focal Plane reticles: Guerrilla Dot BDC Long and Guerrilla Dot MOA Long. In addition, Guerrilla Dot MIL Long and green reticle illumination are available in 1-10x Arrowheads only. If you are searching for an affordable LPVO that checks all the boxes needed for duty use, you just found it: the Swampfox Arrowhead.

ARROWHEAD 1-10 RED BDC ORDERS PLACED NOW WILL SHIP APPROX. NOVEMBER 14TH.

ARROWHEAD 1-10 GREEN BDC ORDERS PLACED NOW WILL SHIP APPROX. NOVEMBER 14TH.

ARROWHEAD 1-10 GREEN MIL ORDERS PLACED NOW WILL SHIP APPROX. NOVEMBER 14TH.

ARROWHEAD 1-8 RED BDC ORDERS PLACED NOW WILL SHIP APPROX. NOVEMBER 14TH.

The selected product combination is currently unavailable.
quantity

Ready To Serve

Designed from the outset to be duty grade, these 1-6x, 1-8x, and 1-10x Low Power Variable Optics are ready for the most serious law enforcement, competition, and hunting applications. Meet the Arrowhead.

SECOND FOCAL PLANE

Second Focal Plane construction provides a consistent reticle size at all magnifications. The result is an instant, familiar sight picture for unbeatable speed when it counts most-- from close quarters distance out to 200 yards.

INCLUDED THROW LEVER​

You need to be at maximum magnification to use the medium range holdovers, so Arrowhead's included throw lever lets you slap your magnification to the max in a heartbeat. Arrowhead's lever attaches directly via four bolts—there's no ring to slip or loosen over time.

Locking Windage And Elevation Turrets​

Arrowhead features push-pull locking turrets that require no tools and can be quickly used out in the field. Push the turrets towards the scope body to lock them in place. Pull them away from the scope body to adjust. Real simple, real tough. No more worries that a turret got "bumped" away from its zero when you weren't looking. MOA reticles are paired with 0.5 MOA-per-click turrets. MIL reticles are paired with 0.1 MIL-per-click turrets.

BRIGHTEST DAY, DARKEST NIGHT​

Arrowhead features dual LED emitters, making daylight bright etched reticle illumination possible at the highest settings. For those who must press on in the darkest night, the first two brightness settings are night vision compatible and cannot easily be seen by the naked eye at all. Arrowhead's illumination knob features a tactile "OFF" notch between each of the 12 brightness settings.​

SIGHT PICTURE SUPERIORITY

Great glass is just the start of what makes a truly superior sight picture. Arrowhead's optical engineering, the math that dictates how the lenses transmit the light through Arrowhead, is state of the art. You'll see the difference as soon as you look through Arrowhead—at any magnification. ​

GREAT GLASS IS JUST THE START​

This is the best glass we know how to make, carefully infused with rare earth metals and polished to perfection. Only the most immaculate lenses are worthy to move on to the next step. The best anti-reflection, anti-fog, anti-scratch, and hydrophobic coatings are then applied and checked carefully before lens installation.​

BETTER MATH, BETTER SCOPE​​

Arrowhead's advanced optical engineering results in a wider field of view and superior overall brightness, without sacrificing eye relief or eye box characteristics, even at full magnification. You get it all with Arrowhead.

SPEED IS FINE, ACCURACY IS FINAL

Arrowhead's fast focus eyepiece, excellent optical characteristics, and user-friendly controls make it a very "fast" scope for close quarters shooting. As range increases, more precision is required. Arrowhead's turret tracking and reticle fidelity is excellent. From the flat, true 1x all the way out to 6x, 8x, or even 10x magnification, Arrowhead excels in a huge variety of real-world shooting situations. ​

ZERO RESET TURRETS

After sighting in your rifle it is easy to reset "zero" indication on the turrets using just a coin or wide screwdriver to release the outer turret and re-orient it. This very important feature can be adjusted in seconds without affecting the push/pull locking system at all.

READY FOR DUTY

Arrowhead's internal components are made of stronger materials and machined to the finest tolerances we can achieve. Even the main scope body is machined from a harder grade of aluminum. Toughness and precision are both increased at the same time, without sacrificing one goal to boost the other.

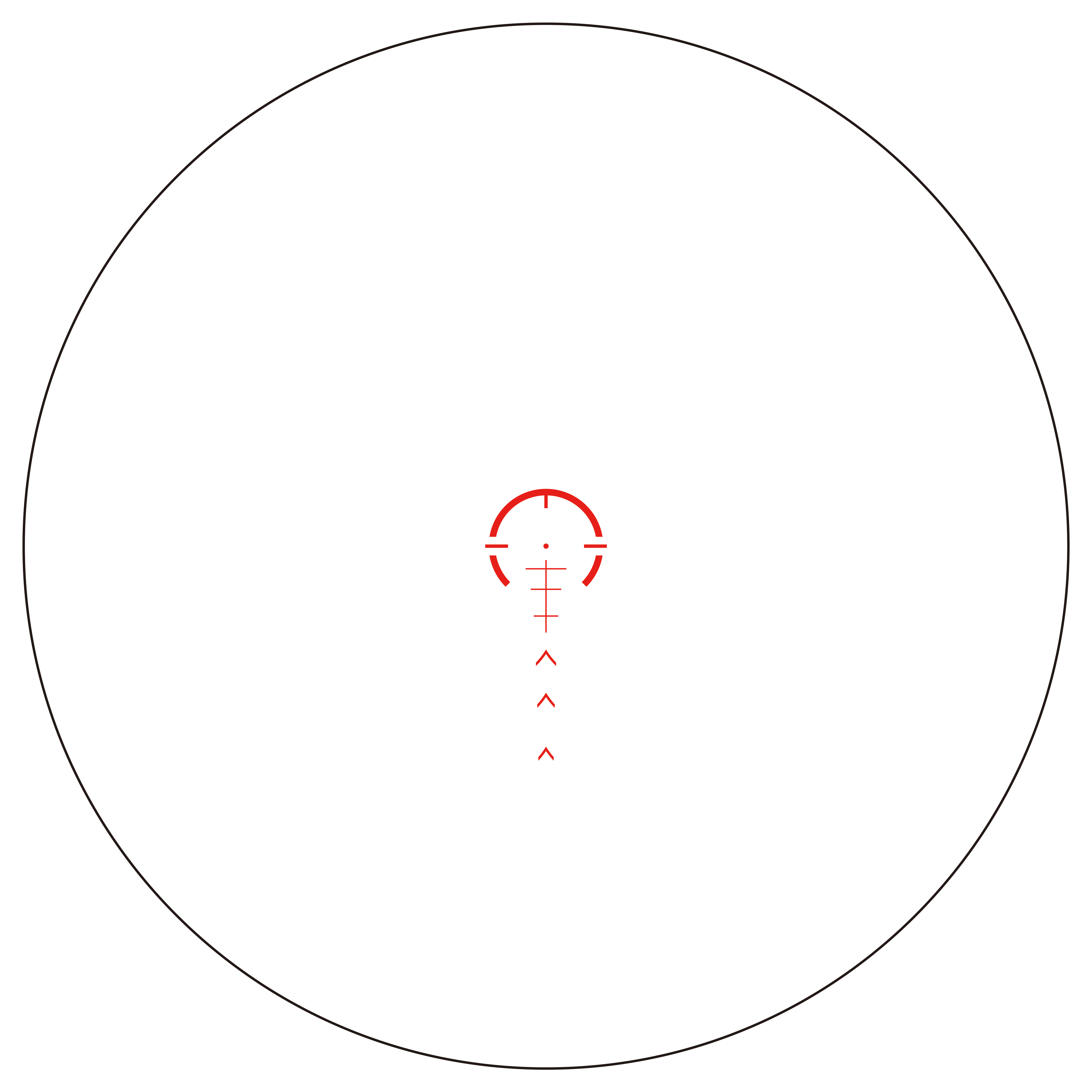

Guerrilla Dot BDC Long Reticle​

Arrowhead's "Guerrilla Dot BDC Long" 5.56 NATO / .308 Win Bullet Drop Compensation reticle builds on the successful BDC from our Tomahawk series. A 50/200 battlesight zero center dot provides good speed up close, followed by shoulder ranging holds to 500 yards. S-Wing chevrons provide very fine aiming points for precision shots at 600, 700, and yeah, 800 yards. ​

GUERRILLA DOT MOA LONG RETICLE​

Not shooting 5.56 or .308? "Guerrilla Dot MOA Long" has you covered. A full 30 MOA of vertical holdover ladder is incorporated. Chrony your rifle, run your numbers through a ballistic calculator, and see how far you can stretch it. Can you take your 6.5 Grendel to 900 yards? Can you take your 6.5 Creedmoor to 1000 yards, with a 1-10x LPVO? Arrowhead's MOA reticle is ready if you are.

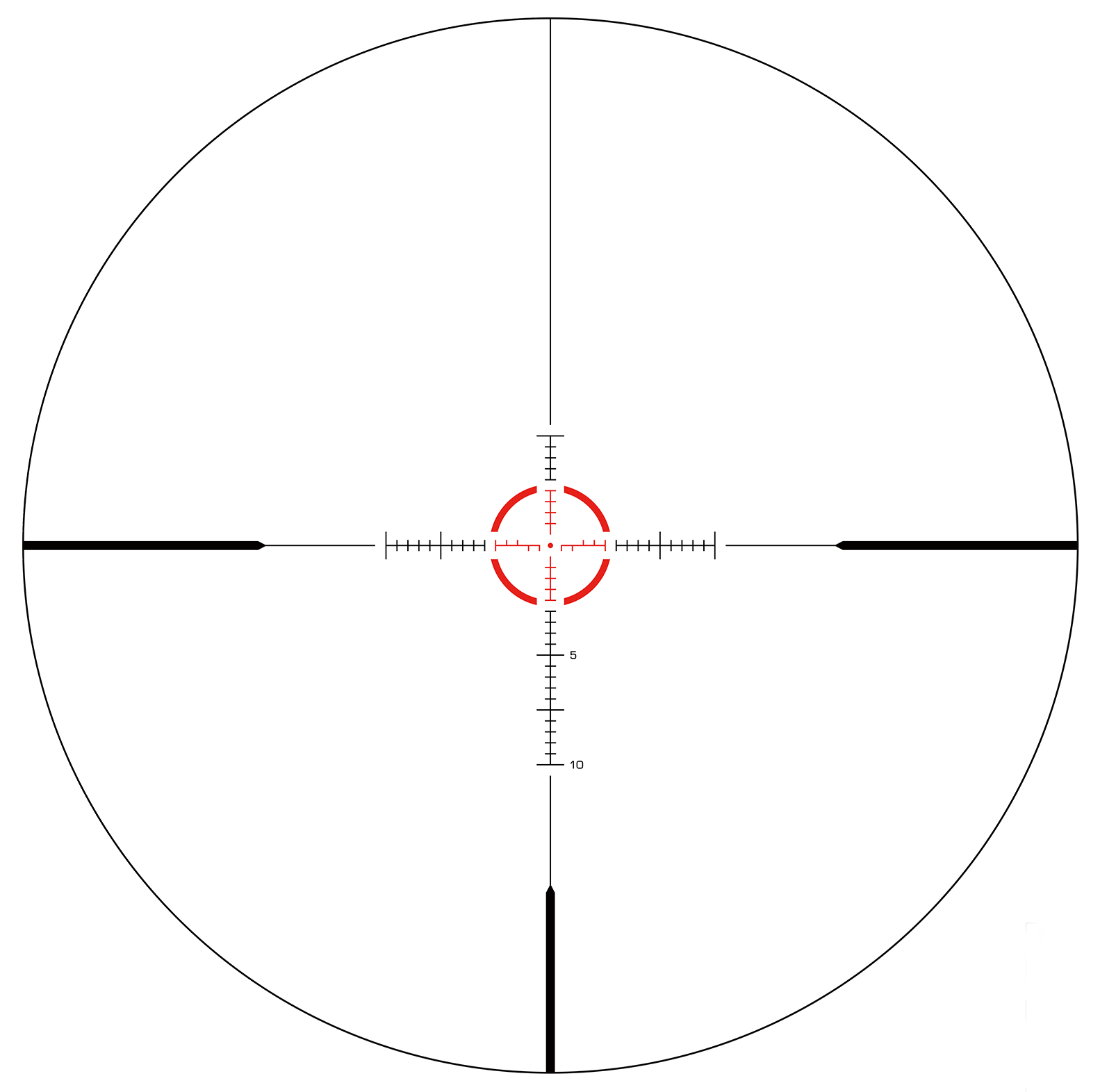

GUERRILLA DOT MIL LONG RETICLE

Available only in the 1-10x Arrowhead, “Guerrilla Dot MIL Long” is our first partially illuminated LPVO reticle. Paired with 0.1 MIL-per-click locking turrets, this reticle offers 10 MIL of vertical holdover and a visually symmetrical presentation. Like our MOA reticles, Guerrilla Dot MIL Long is compatible with any caliber with the help of a quality ballistic calculator (our favorite is StrelokPro, which has all Arrowhead reticles built right into it). Shooters who prefer Milliradian math, this is the integrated reticle/turret system you’ve been asking for.

STUBBORNLY RESILIENT​​

We designed and built Arrowhead for use in the most serious situations. Law enforcement patrol rifles, home defense carbines, defense of livestock from predators, hunting dangerous game, and more. We know that some of our customers will take Arrowhead into harm's way. Arrowhead's durability is our best statement of taking that responsibility extremely seriously. ​

Of course, like all Swampfox produts, Arrowhead is backed by our 50,000 Round Guarantee.

Magnification

1-6x

Tube Diameter

30mm

Objective Lens Diameter

24mm

Exit Pupil (mm)

7.6mm-3.9mm (1X-6X)

Eye Relief (in)

3.39-3.54" (1X-6X)

FOV @ 100 Yards (ft)

119.9-19.27' (1X-6X)

Click Value

1/2 MOA

Parallax Setting

100 yds

Travel Per Rotation

60 Clicks/ 30 MOA

Max Elevation Adjustment

100 MOA

Max Windage Adjustment

100 MOA

Lens Coating

Fully Multi-Coated/ Anti-fog/ Hydrophobic

Illumination

12 Position Illumination turret

Battery

Side-mounted CR2032 Battery

Reticle

BDC or MOA Glass Etched Illuminated

Magnification Required for Reticle Accuracy

6x

Fast Focus Diopter

Yes, -2 to +2

Turret Style

Push/Pull Locking Turrets with Zero Reset

Length

10.67"

Weight

20.36 oz

Waterproof Rating

IPX7

Impact Resistance

1,100 G Forces

Magnification

1-8x

Tube Diameter

30mm

Objective Lens Diameter

24mm

Exit Pupil (mm)

7.7mm-2.95mm (1X-8X)

Eye Relief (in)

3.35-3.54" (1X-8X)

FOV @ 100 Yards (ft)

122.2-14.4' (1X-8X)

Click Value

1/2 MOA

Parallax Setting

100 yds

Travel Per Rotation

60 Clicks/ 30 MOA

Max Elevation Adjustment

100 MOA

Max Windage Adjustment

100 MOA

Lens Coating

Fully Multi-Coated/ Anti-fog/ Hydrophobic

Illumination

12 Position Illumination turret

Battery

Side-mounted CR2032 Battery

Reticle

BDC or MOA Glass Etched Illuminated

Magnification Required for Reticle Accuracy

8x

Fast Focus Diopter

Yes, -2 to +2

Turret Style

Push/Pull Locking Turrets with Zero Reset

Length

10.67"

Weight

20.36 oz

Waterproof Rating

IPX7

Impact Resistance

1,100 G Forces

Magnification

1-10x

Tube Diameter

30mm

Objective Lens Diameter

24mm

Exit Pupil (mm)

8.0mm-2.3mm (1X-10X)

Eye Relief (in)

3.46-3.54" (1X-10X)

FOV @ 100 Yards (ft)

115.6-11.5' (1X-10X)

Click Value

1/2 MOA or 0.1 MIL (reticle dependent)

Parallax Setting

100 yds

Travel Per Rotation

60 Clicks/ 30 MOA

Max Elevation Adjustment

100 MOA

Max Windage Adjustment

100 MOA

Lens Coating

Fully Multi-Coated/ Anti-fog/ Hydrophobic

Illumination

12 Position Illumination Turret

Battery

Side-mounted CR2032 Battery

Reticle

BDC or MOA Glass Etched Illuminated

Magnification Required for Reticle Accuracy

10x

Fast Focus Diopter

Yes, -2 to +2

Turret Style

Push/Pull Locking Turrets with Zero Reset

Length

10.91"

Weight

20.36 oz

Waterproof Rating

IPX7

Impact Resistance

1,100 G Forces

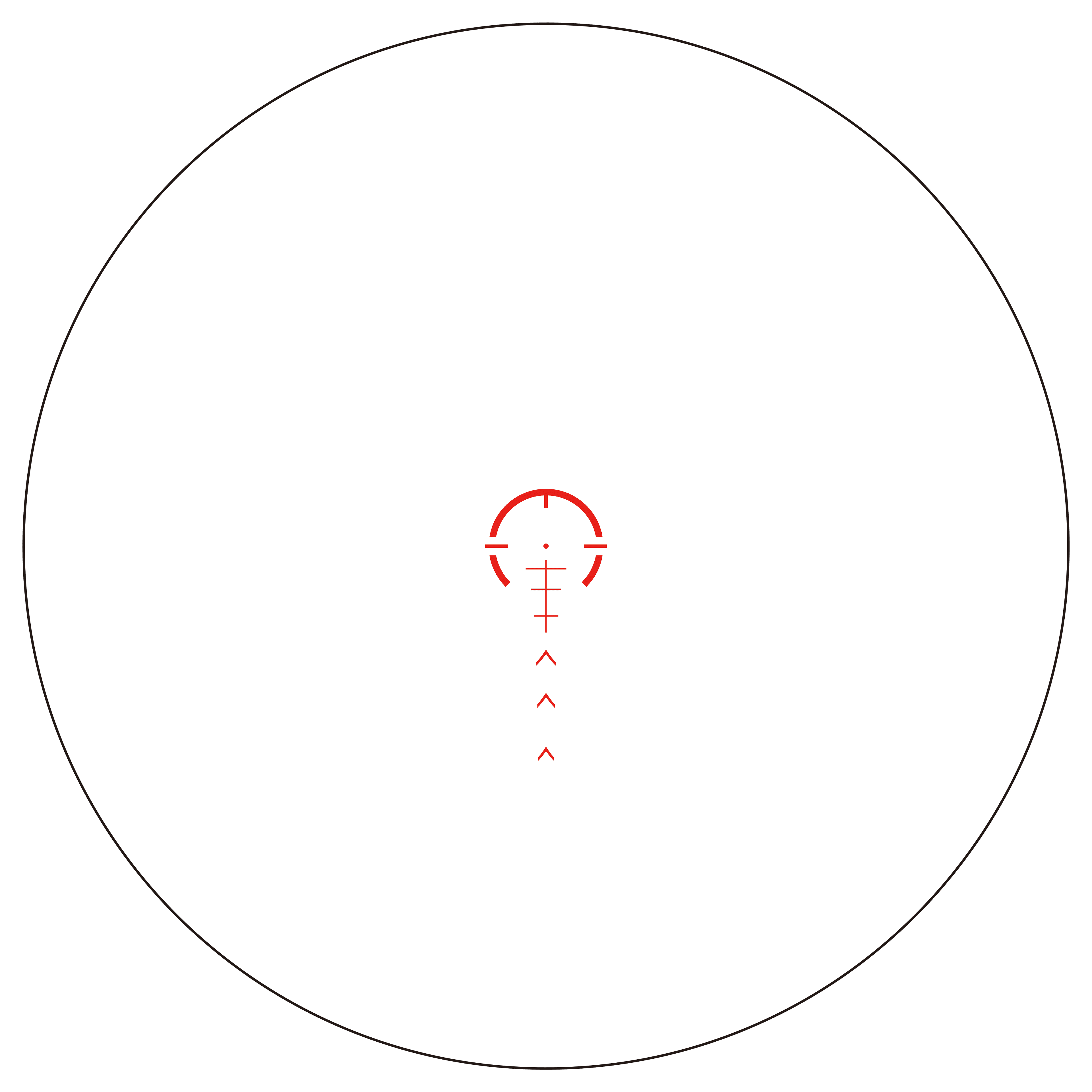

The Guerrilla Dot BDC Long is highly versatile, capable of delivering rapid target acquisition at true 1x magnification, while also providing holdovers for mid- to long-range shots. Bullet drop subtensions are designed to work with the optic at its highest magnification. The center dot and its corresponding zeros can be used at any magnification.​

CALIBER CONSIDERATIONS

Guerrilla Dot BDC Long was designed primarily for the AR platform using the 5.56 NATO trajectory, based on the following ballistics parameters:​

  • Lake City/Federal 5.56 NATO
  • 55gr FMJ/XM193
  • Ballistic Coefficient: .243
  • Muzzle Velocity: 3101
  • Barrel Length: 16”1

The reticle can also be used with 7.62 NATO / .308 Win. Based on the following:​

  • Hornady .308 WIN 155gr
  • Ballistic Coefficient: .435
  • Muzzle Velocity: 2,865 fps

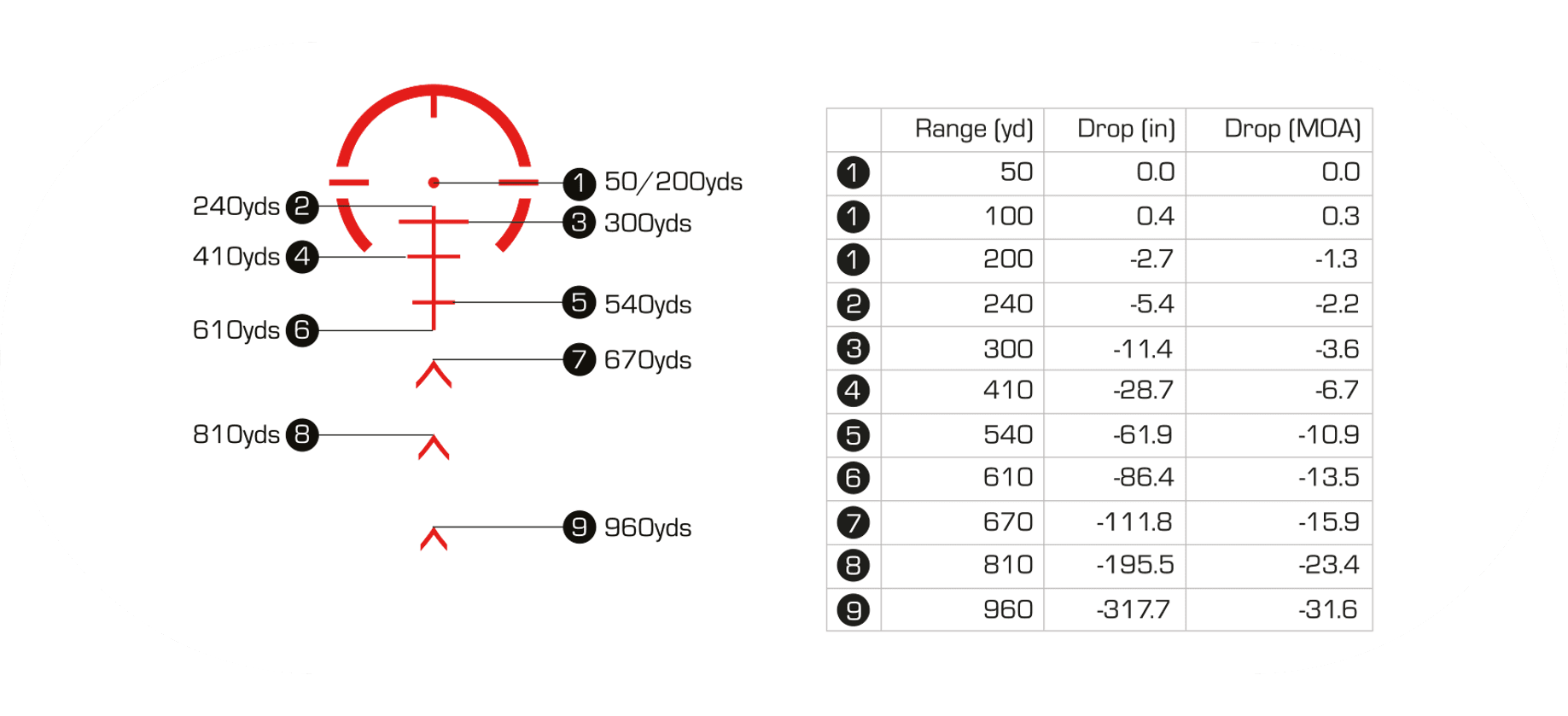

BULLET DROP COMPENSATION​

For 5.56 NATO 55gr FMJ; Based on 50/200 yard zero​​

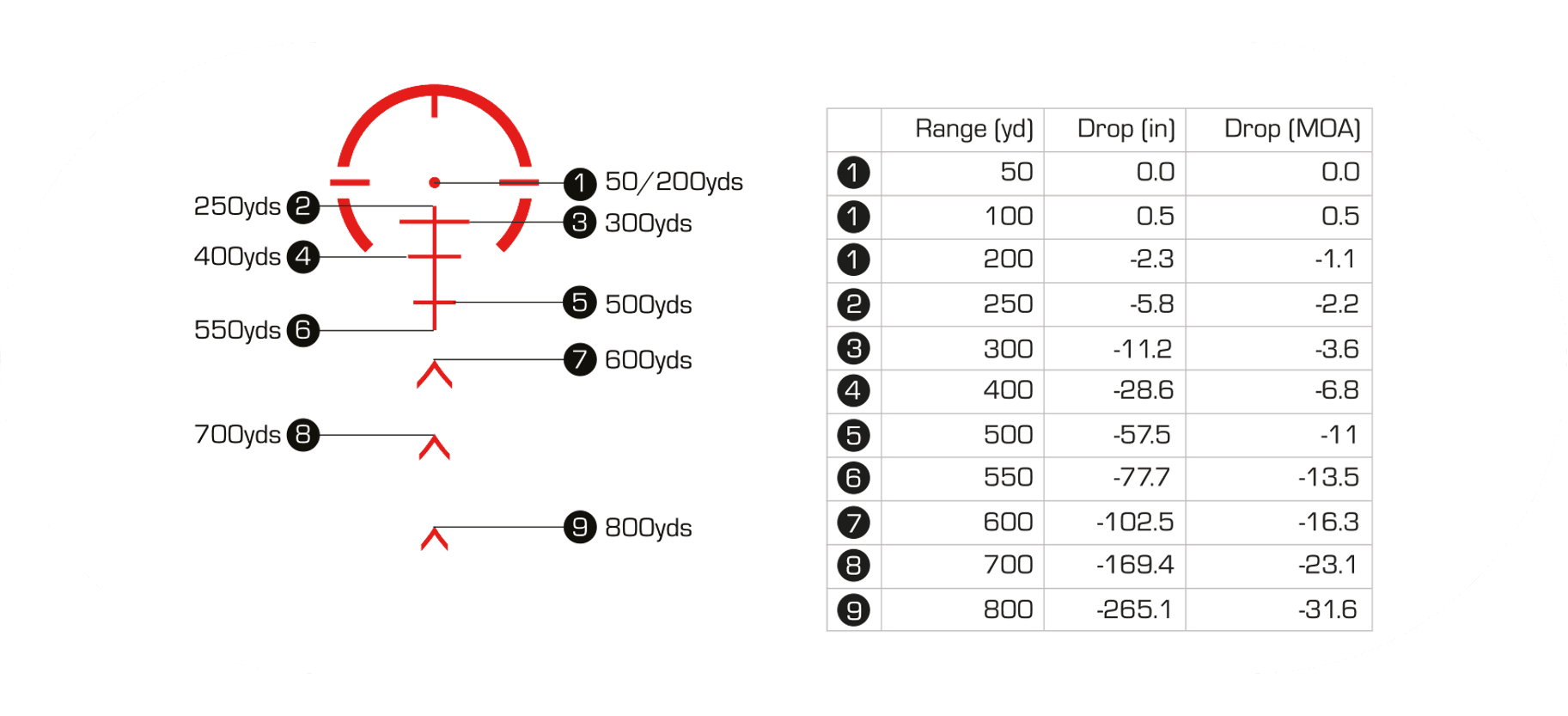

BULLET DROP COMPENSATION​

For .308 WIN / 7.62 NATO 155gr FMJ; Based on 50/200 yard zero​

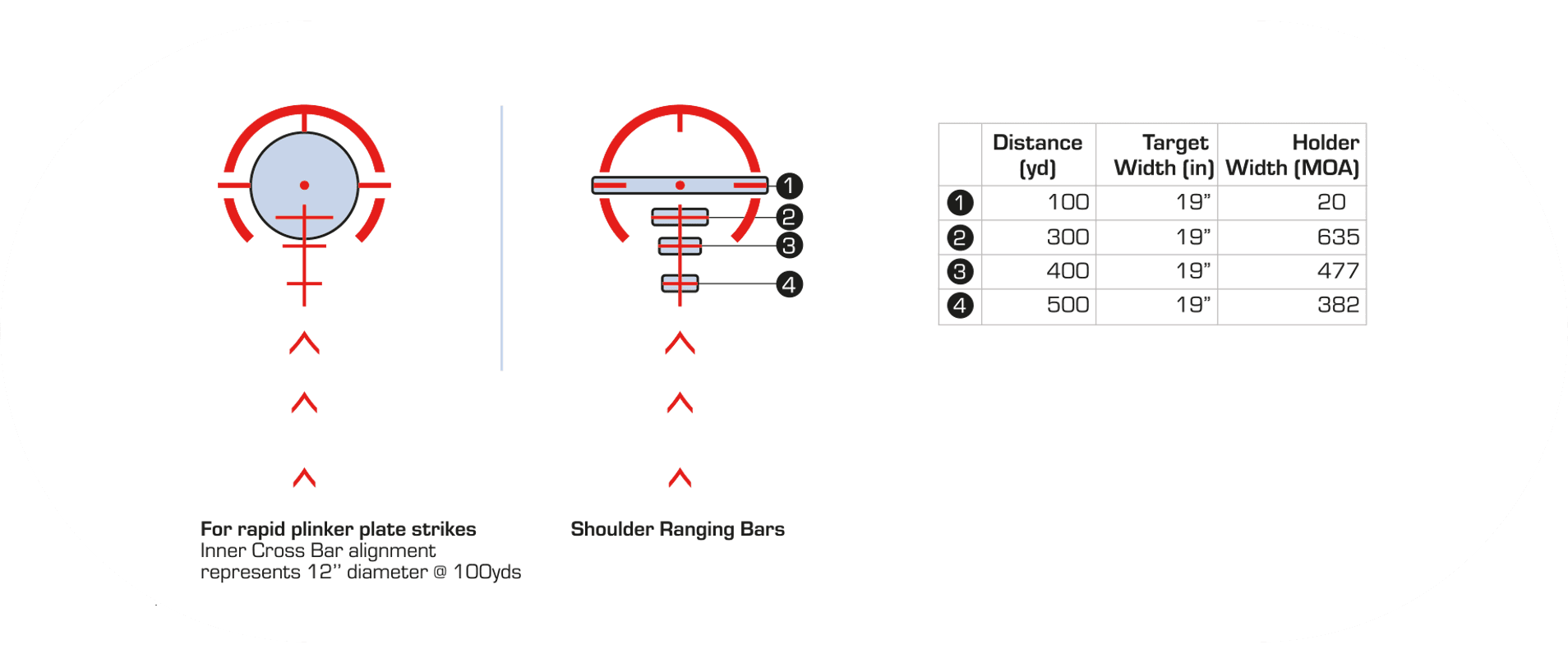

RAPID RANGING​

The Guerrilla Dot BDC Long reticle can be used to estimate distance to target based upon various reference points.​

The Guerrilla Dot MOA Long is highly versatile, capable of delivering rapid target acquisition at true 1x magnification, while also providing holdovers for mid- to long-range shots. ​​

MOA & THE SECOND FOCAL PLANE​

Guerrilla Dot MOA Long is a Second Focal Plane reticle, meaning the reticle will always appear to remain the same size as the scope's magnification is changed from minimum to maximum. As you increase the magnification, the target will appear to get bigger while the reticle remains the same. Therefore, the MOA measurements on the reticle are only accurate and "true" at the highest magnification setting.​​

Installing the included throw lever onto your Arrowhead scope makes it easy to ensure that you have reached maximum magnification before using the MOA markings as holdover aiming points.​

MOA DIMENSIONS​​

The red illuminated ring surrounding the center dot provides a quick strike capability for fast shooting up close, while the MOA ladder provides holdovers in standard 2 MOA increments.

RAPID RANGING​​

The Guerrilla Dot MOA Long reticle can be used to estimate distance to target based upon various reference points.​

STANDARD MOA RANGING

In order to range targets or objects with Sharpshooter MOA, use the MOA ranging formula:​

Target Size (inches) x 95.5” / Image Size in MOA = Range In Yards​

In order to obtain an accurate range estimation, you need to know the size of the target in inches. Using either vertical or horizontal hash marks, measure the target dimensions in MOA as you view it through the scope. Multiply the target’s actual size in inches x 95.5”, then divide that result by your MOA target dimension observation to get the range to target in yards.

EXAMPLE #1:

Assuming this combatant is 6 feet [72 inches) tall, and his body length comprises 15 MOA in your reticle, how far away is he? ​

72 x 95.5” / 15 MOA = 460 Yards

The Guerrilla Dot MIL Long is highly versatile, capable of delivering rapid target acquisition at true 1x magnification, while also providing holdovers for mid- to long-range shots.

arrowhead

MIL & THE SECOND FOCAL PLANE

Guerrilla Dot MIL Long is a Second Focal Plane reticle, meaning the reticle will always appear to remain the same size as the scope's magnification is changed from minimum to maximum. As you increase the magnification, the target will appear to get bigger while the reticle remains the same. Therefore, the MIL measurements on the reticle are only accurate and "true" at the highest magnification setting.

Installing the included throw lever onto your Arrowhead scope makes it easy to ensure that you have reached maximum magnification before using the MIL markings as holdover aiming points.

MIL DIMENSIONS

The red illuminated ring surrounding the center dot has an outer diameter of 6.15 MIL and an inner diameter of 5.55 MIL. The ring provides quick strike capability for fast shooting up close, while the MIL ladder provides holdovers in standard 0.5 MIL increments for shooters comfortable with the Milliradian system of measurement.


arrowhead

STANDARD MIL RANGING

In order to range targets or objects using the Guerrilla Dot MIL Long reticle, use the MIL ranging formula:

Target Size (centimeters) x 10 / Image Size in MIL = Range In Meters

In order to obtain an accurate range estimation, you need to know the size of the target in centimeters. Using either vertical or horizontal hash marks, measure the target dimensions in MOA as you view it through the scope. Multiply the target’s actual size in centimeters x 10, then divide that result by your MIL target dimension observation to get the range to target in yards.

EXAMPLE #1:

Assuming this combatant is 6 feet [183cm) tall, and his body length appears to be 4 MIL tall in your reticle, how far away is he?

183 x 10 / 4 MIL = 450 Meters

arrowhead
  • Scope
  • Throw Lever
  • Wrench for throw lever
  • Flip Up Lens Caps
  • Scope Cloth
  • Battery
  • Product Manual
  • Reticle Manual
