American Warrior Bundle

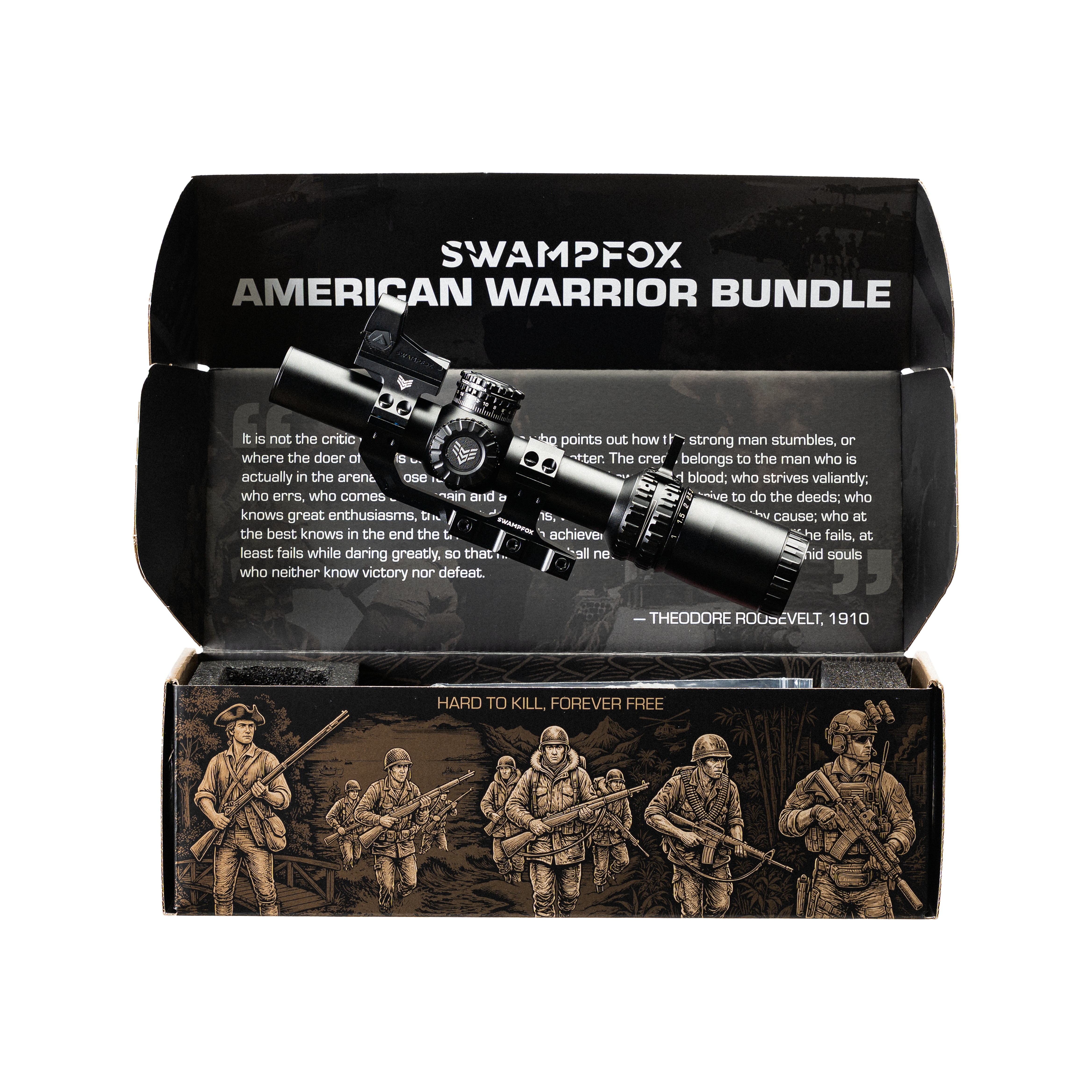

This is the flagship of the American Warrior 250 collection, our tribute to the semiquincentennial and 250 years of the American fighter. Every American Warrior 250 Bundle ships in a custom commemorative box wrapped in original artwork created for America’s 250th birthday, and includes the American Warrior 250 Patch.

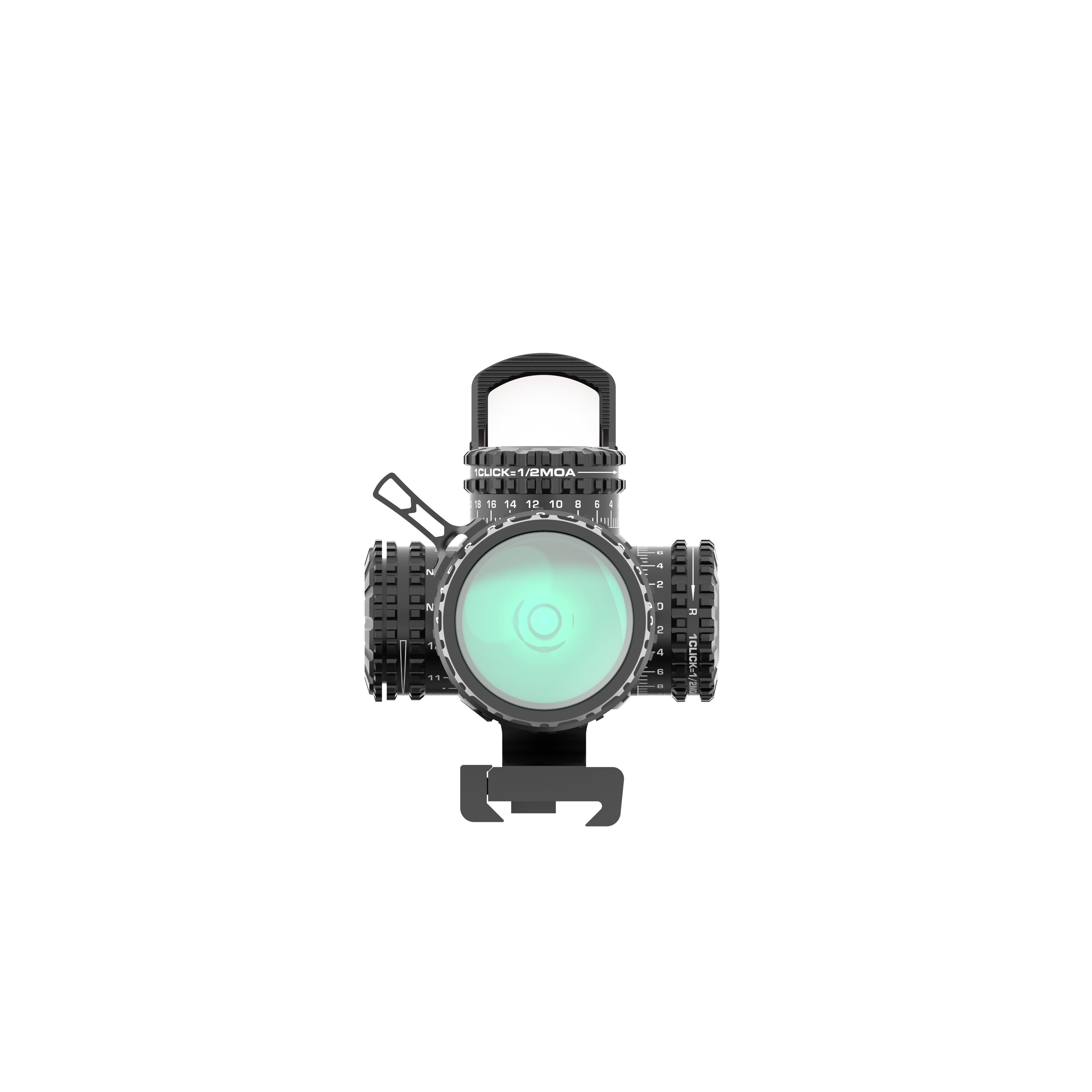

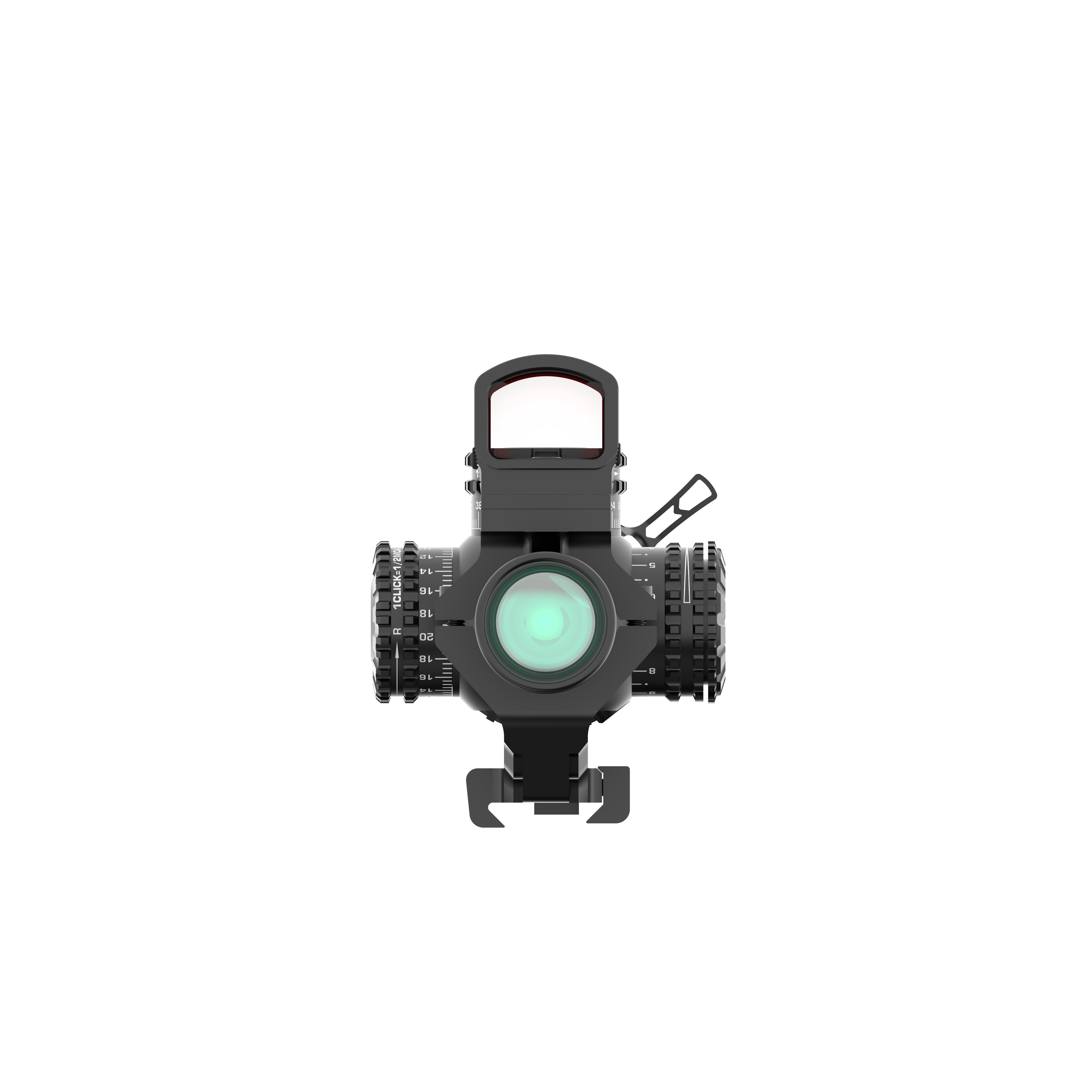

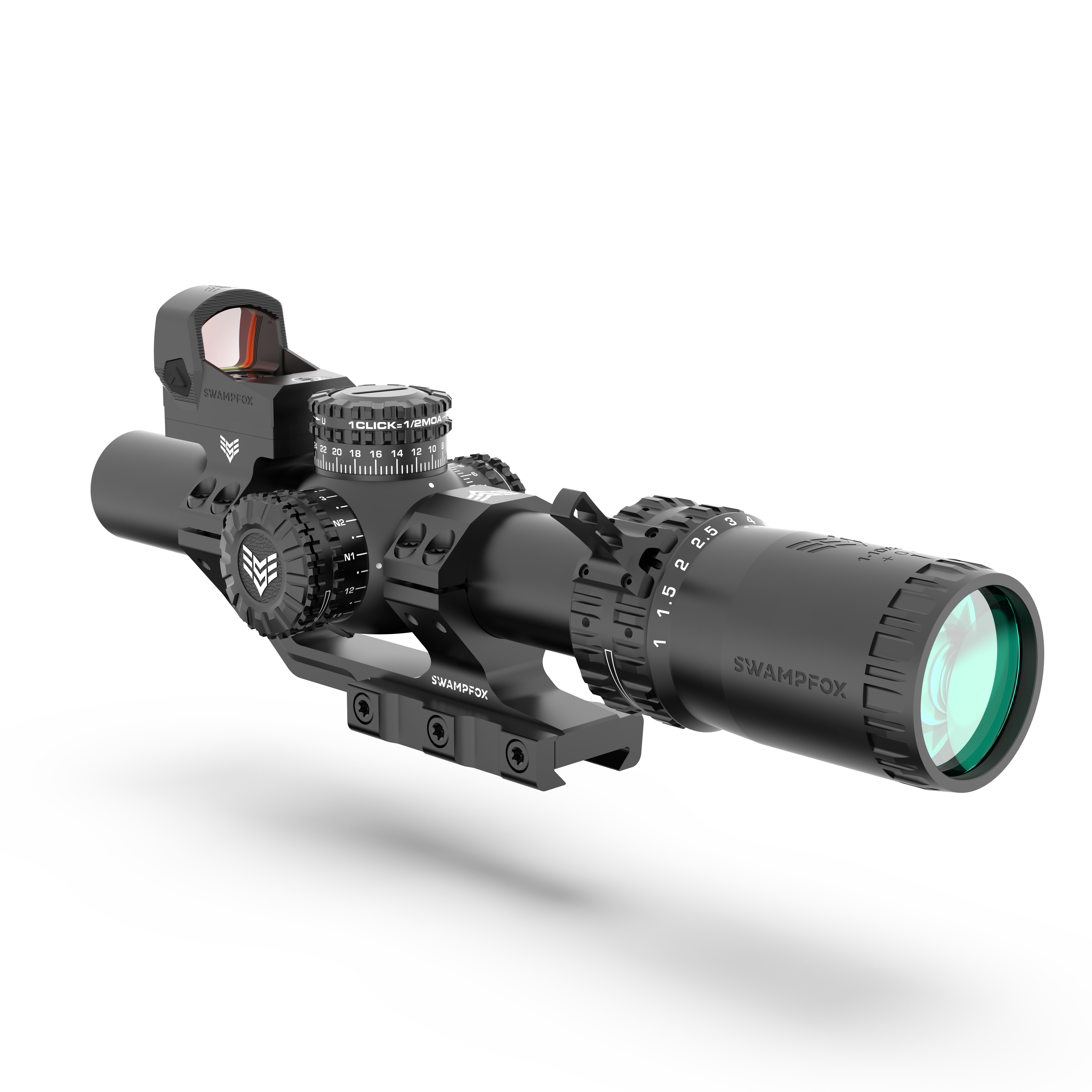

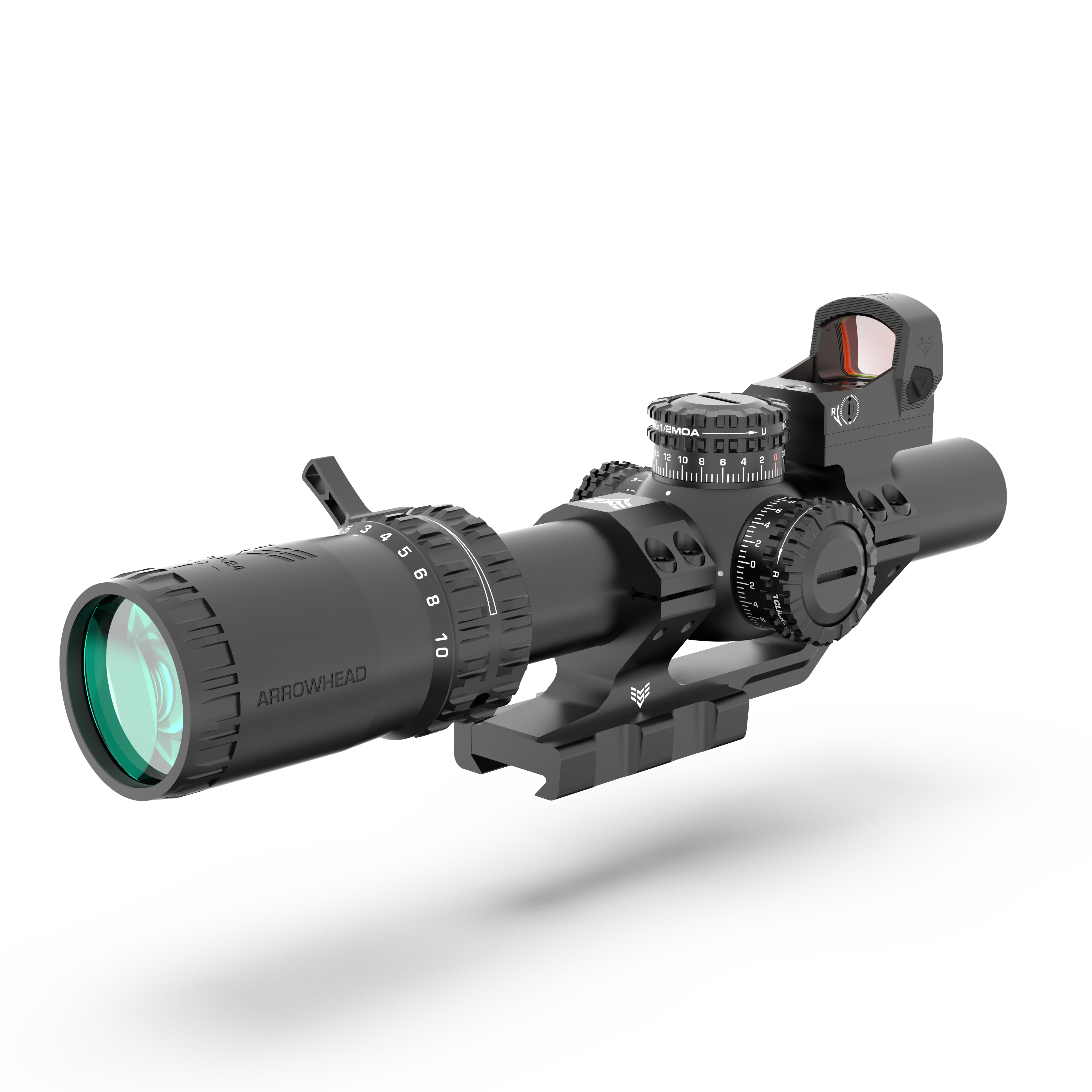

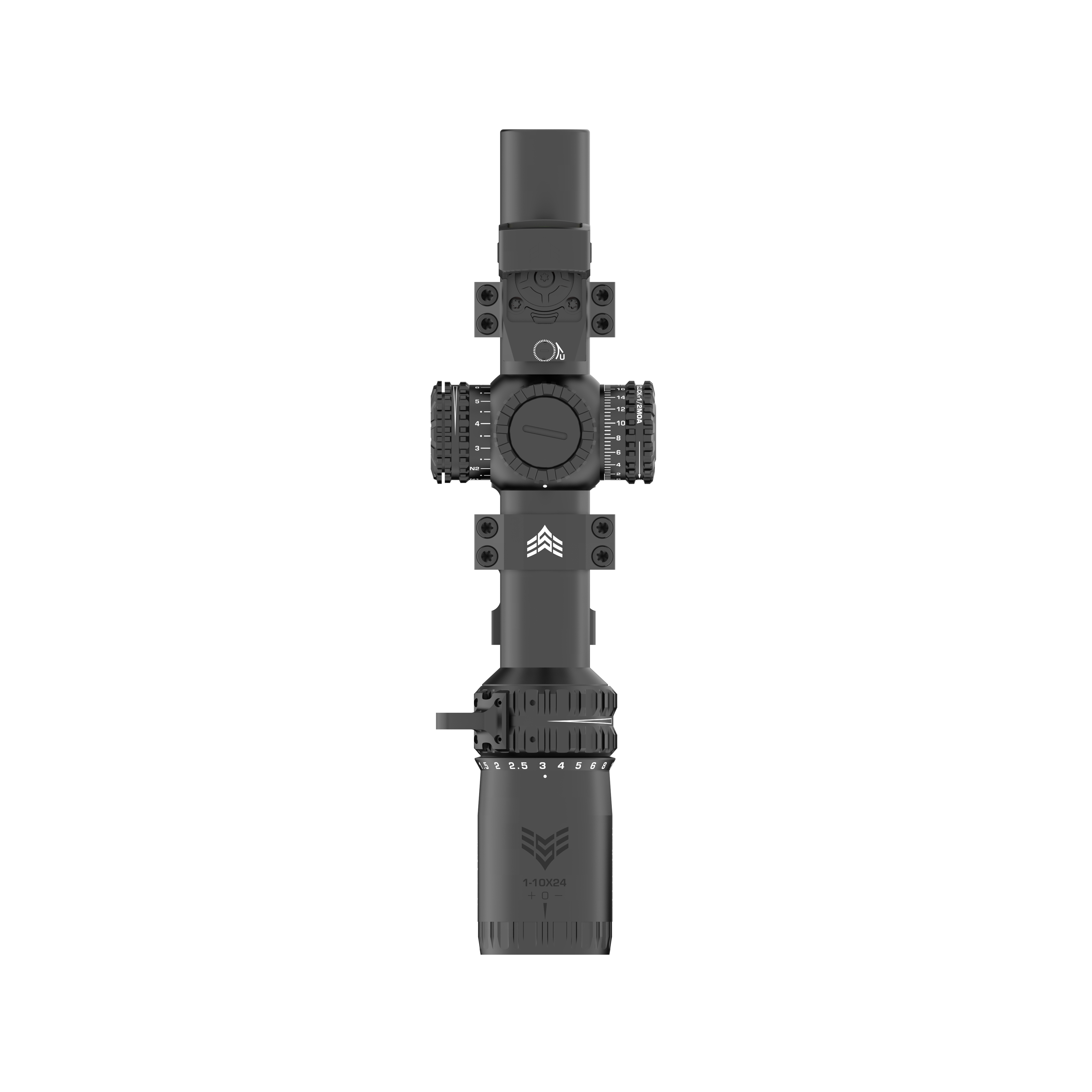

Two optics. One rifle. No compromise. The American Warrior 250 Bundle pairs our Arrowhead 1-10x24 LPVO with a Liberty II dot riding at 12 o’clock on a purpose-built cantilever mount, so you can run magnified precision and a true 1x dot off the same gun. Dial out to 10x for distance, then snap up to the Liberty II for fast, close-range hits. It all ships together: scope, mount, dot, and hardware, ready to mount and zero out of the box.
Two and a half centuries of freedom, One all-in-one package.
Liberty II dot color will match the color of the selected Arrowhead illumination
SKUSWB110-AGL-FDM-L2G
FREE SHIPPING
On orders over $300
Limited Lifetime Warranty
We got your back
CLEAR | PRECISE | TOUGH
Durability you can rely on
TWO OPTICS, ONE RIFLE

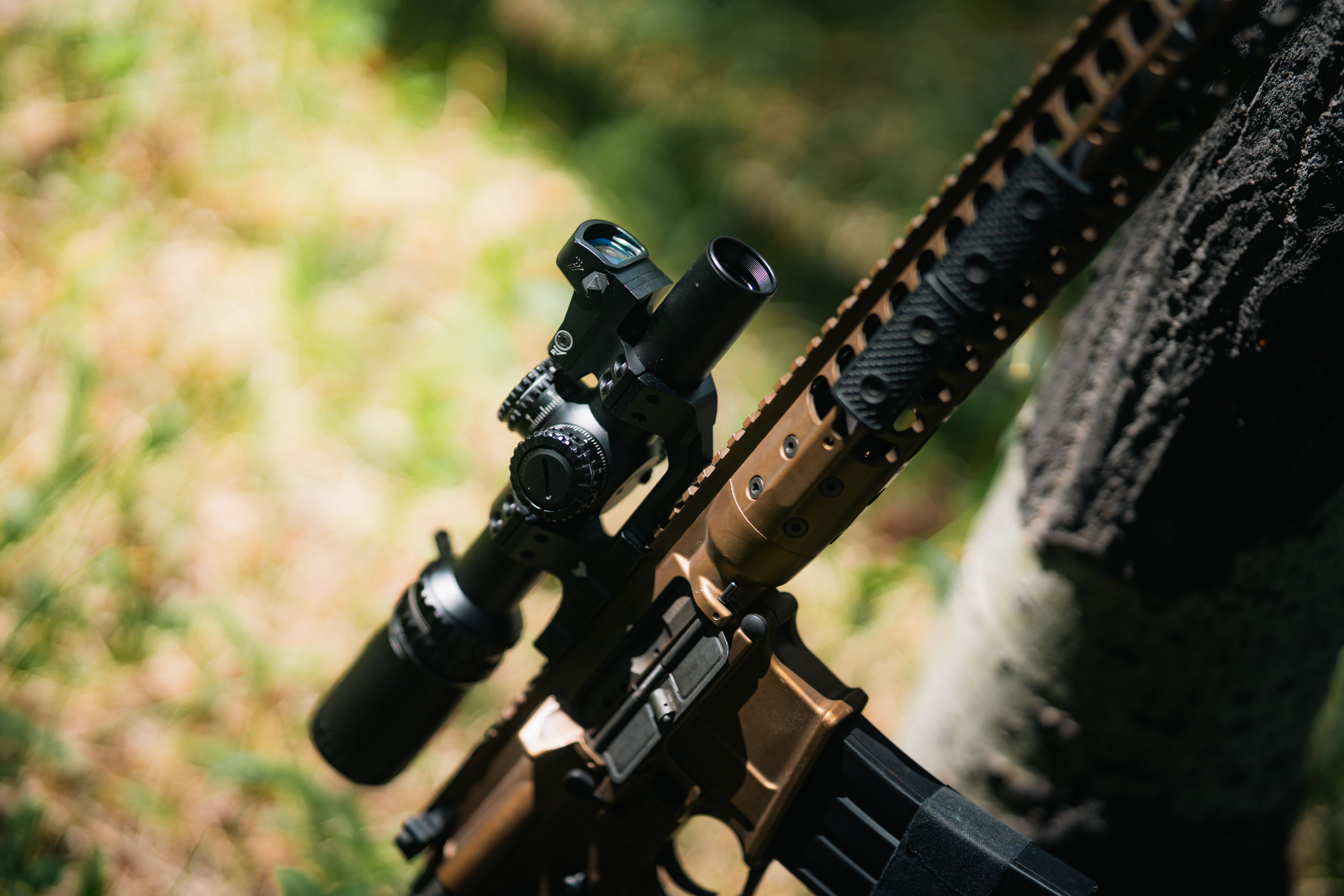

The American Warrior Bundle puts two sighting solutions on one rifle. The Arrowhead 1-10 LPVO covers close quarters out to distance, while the Liberty II red dot rides directly above it for an instant 1x sight picture. Snap between magnified precision and a fast 1x dot without breaking position or swapping optics.
BUILT TO RUN TOGETHER

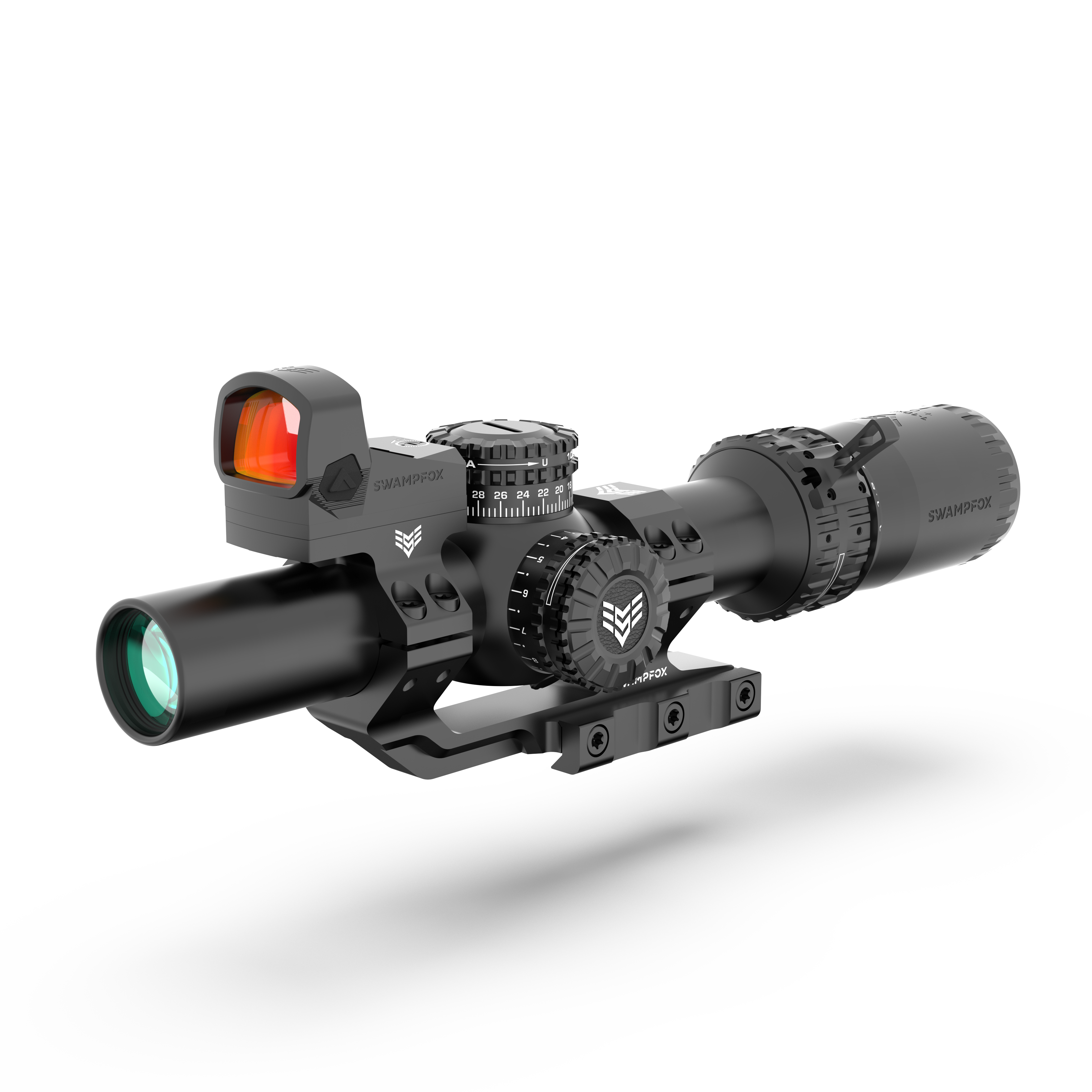

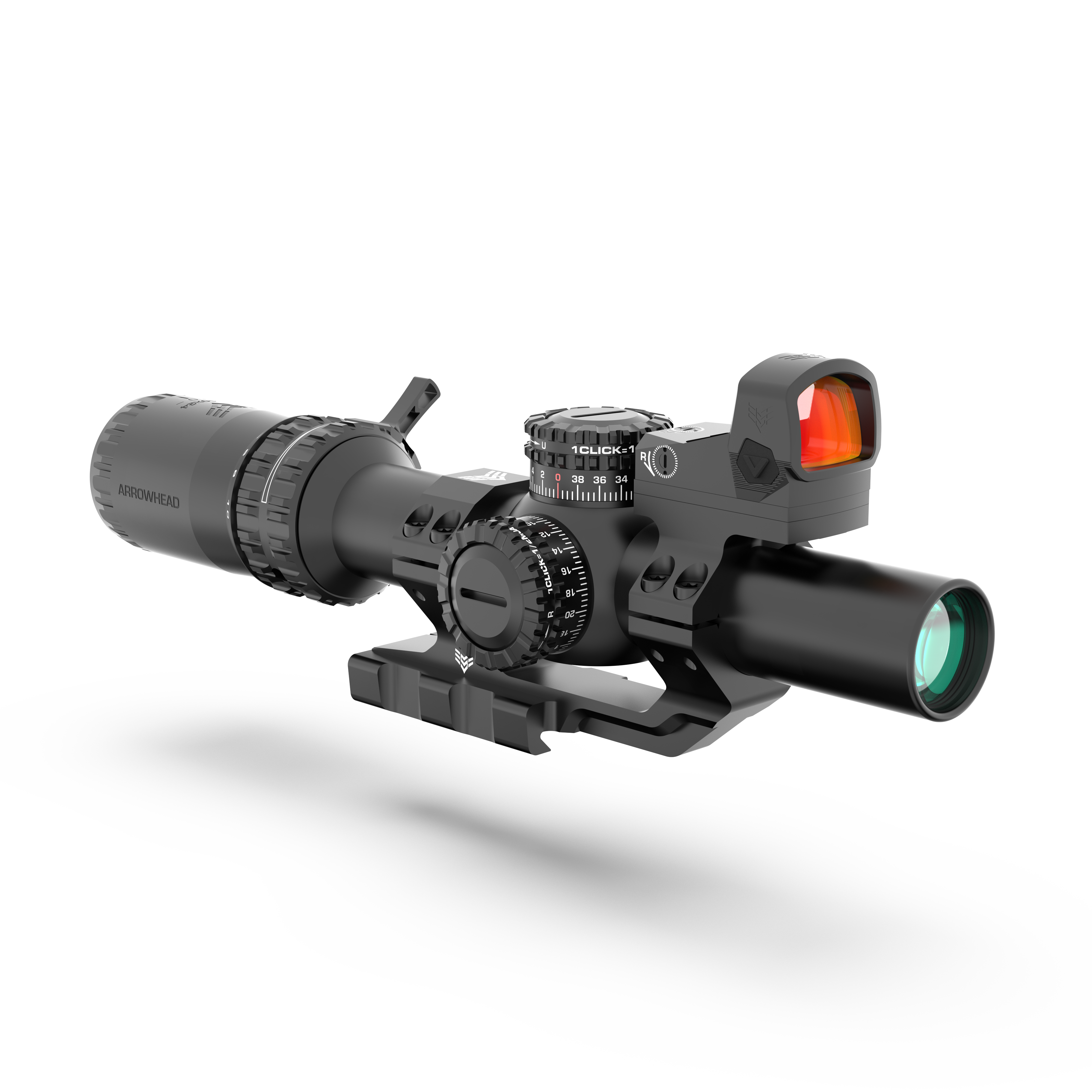

This isn’t a parts-bin pairing. The Freedom Mount Pro’s integrated 12 o’clock RMR mount is purpose built to carry the Liberty II at the perfect height above your Arrowhead’s elevation turret. LPVO, red dot, mount, and all the mounting hardware ship in one package. No guessing on spacers to get your dot to sit at the perfect height. One package purpose built to run together. Mount it, zero it, run it.
FLAGSHIP LPVO GLASS
Arrowhead is our flagship LPVO, and the 1-10x24 is its most versatile reach. Advanced optical engineering delivers a wide field of view and a bright sight picture, with anti-reflection, anti-fog, anti-scratch, and hydrophobic lens coatings for a tough, all-conditions build. Second focal plane construction keeps the reticle a consistent size across the magnification range, giving you a familiar sight picture and faster follow-up shots at any distance.
LOCKABLE TURRETS, ZERO RESET
Push/pull locking turrets allow fast, tool-free adjustments and lock down against unintentional movement, at 0.5 MOA or 0.1 MIL per click. Set your zero, pull the locking bolt, reset to your new zero, and you’re back to true. Dual LED emitters drive daylight-bright reticle illumination across 12 settings with intermittent off positions, including two low-light settings compatible with night vision devices.
LIBERTY II RED DOT

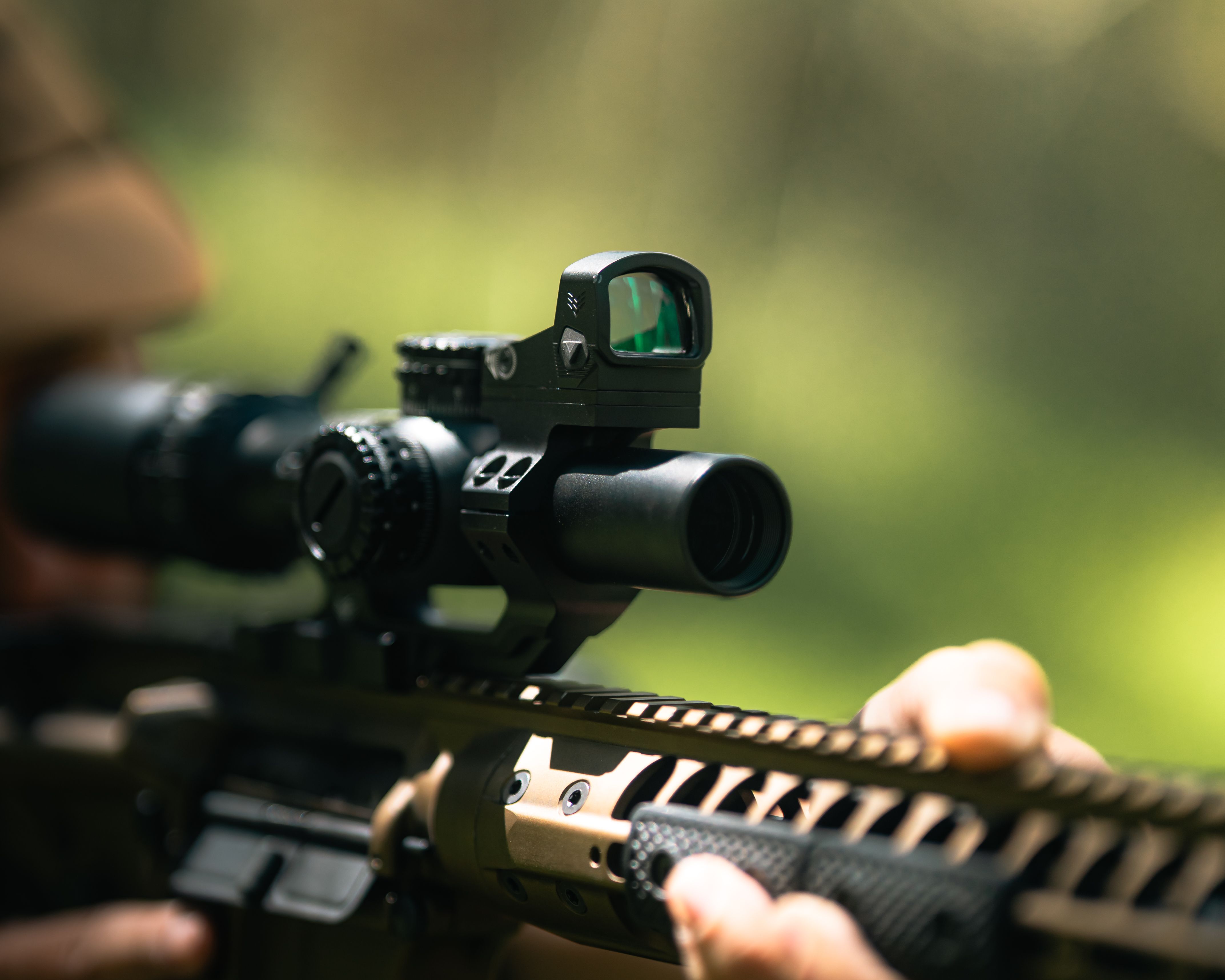

Built for everything from home defense to the range, the Liberty II runs a 24mm window and modern body on a universal RMR footprint, which is exactly what lets it sit clean at 12 o’clock on the Freedom Pro Mount. Ten manual illumination settings keep the 3 MOA dot sharp in any light. Swampfox Shake ’N Wake powers the Liberty II emitter down after 225 seconds of inactivity, then wakes the dot to its last setting the moment it senses motion. Always ready, always conserving.

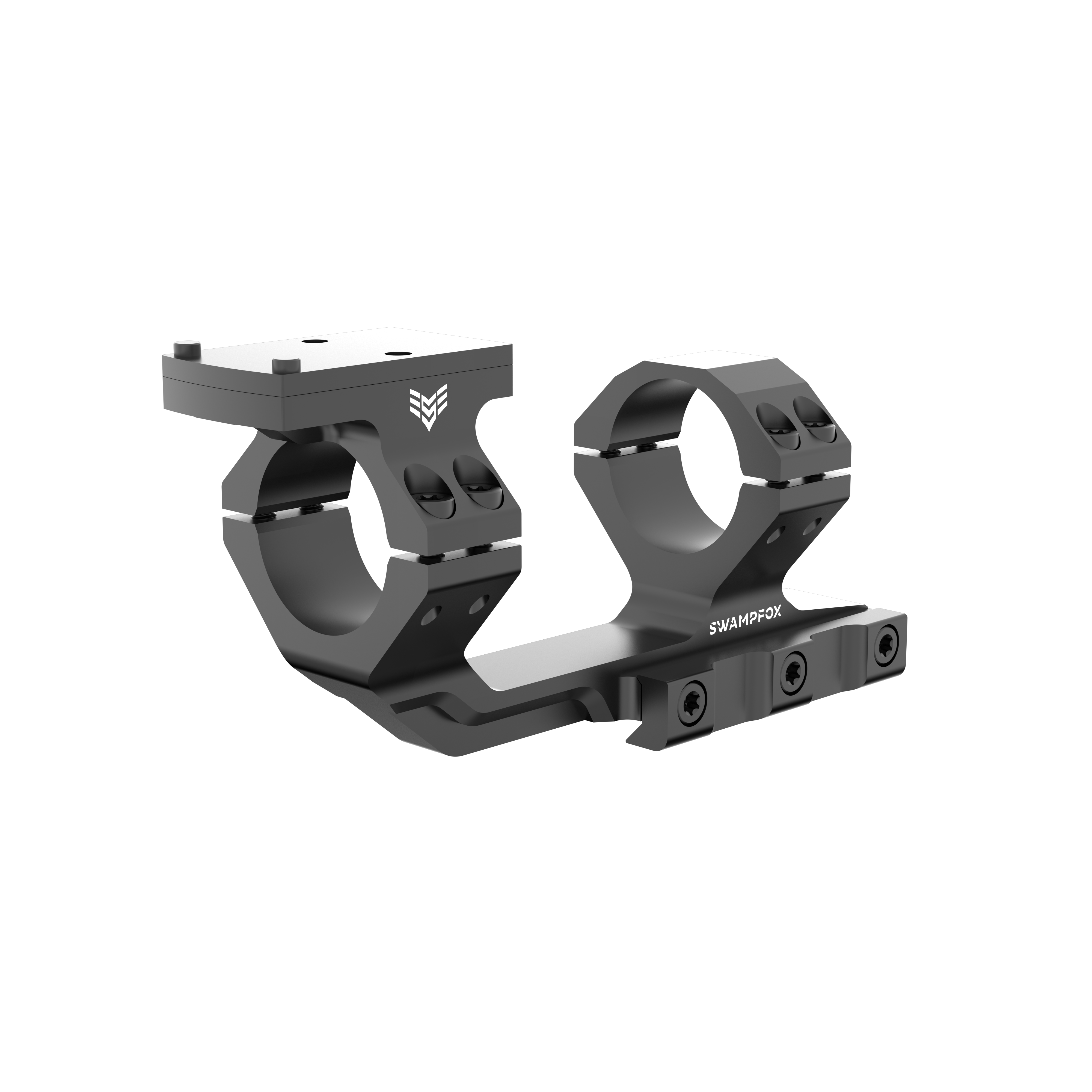

PURPOSE BUILT CANTILEVER MOUNT

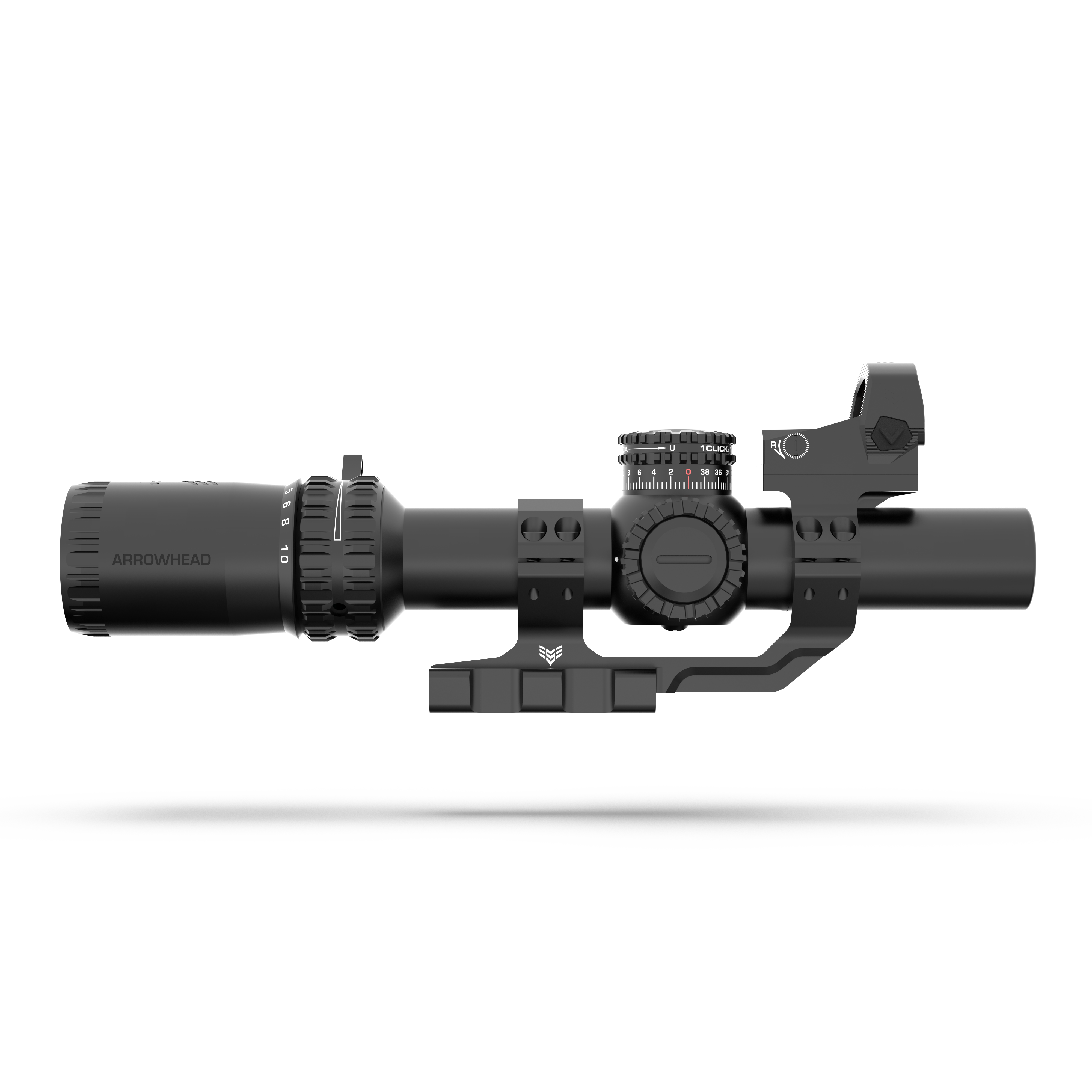

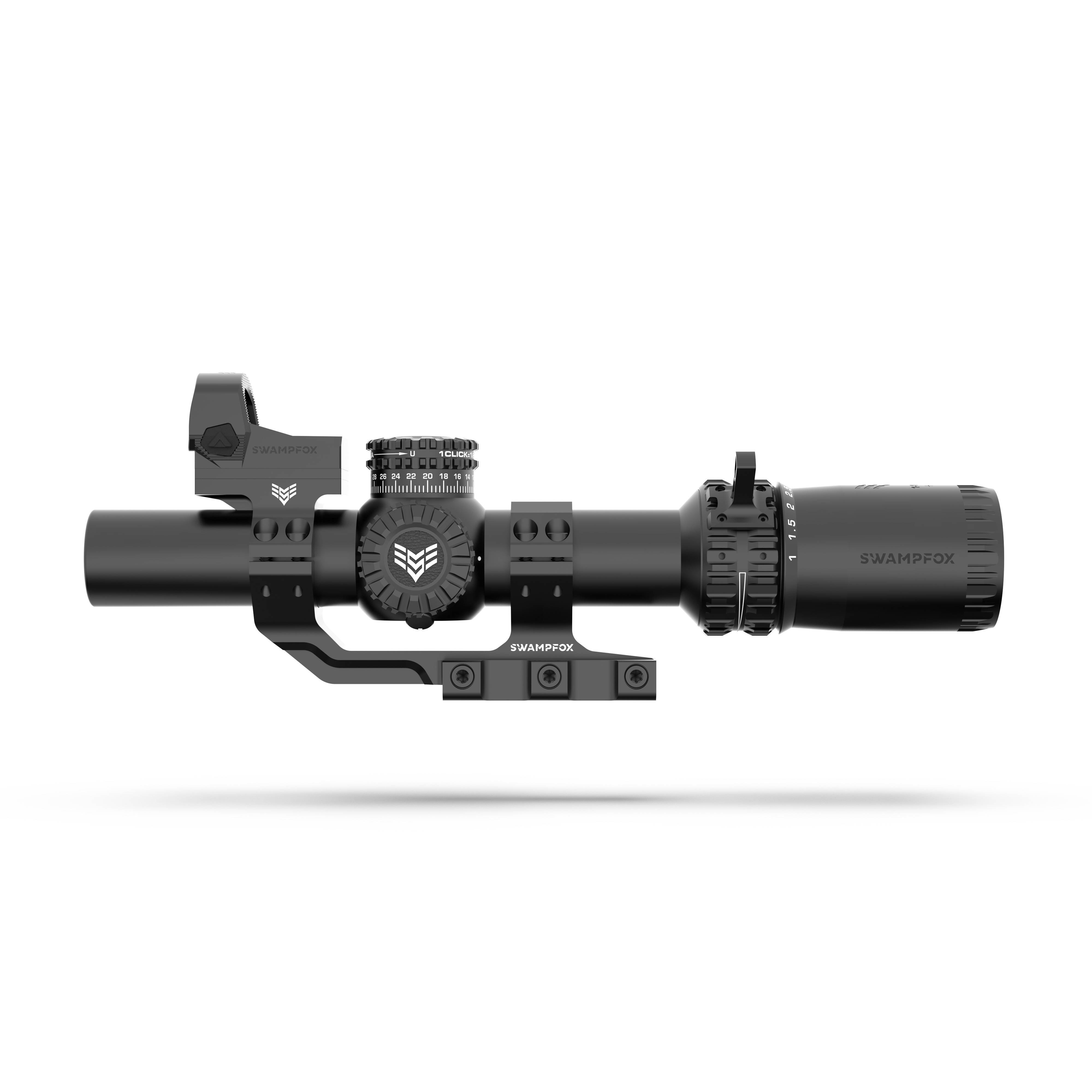

A one-piece 30mm cantilever machined from 6061-T6 aluminum and set at a 1.5" center height for AR-pattern rifles. A purpose-built RMR top ring carries both optics in hard alignment, keeping you ready for anything in one sleek, robust package.
Technical Data
Arrowhead
| Magnification | 1-10x |
| Tube Diameter | 30mm |
| Objective Lens Diameter | 24mm |
| Exit Pupil (mm) | 8.0mm-2.3mm (1X-10X) |
| Eye Relief (in) | 3.46-3.54" (1X-10X) |
| FOV @ 100 Yards (ft) | 115.6-11.5' (1X-10X) |
| Click Value | 1/2 MOA or 0.1 MIL (reticle dependent) |
| Parallax Setting | 100 yds |
| Travel Per Rotation | 60 Clicks/ 30 MOA |
| Max Elevation Adjustment | 100 MOA |
| Max Windage Adjustment | 100 MOA |
| Lens Coating | Fully Multi-Coated/ Anti-fog/ Hydrophobic |
| Illumination | 12 Position Illumination Turret |
| Battery | Side-mounted CR2032 Battery |
| Reticle | BDC or MOA Glass Etched Illuminated |
| Magnification Required for Reticle Accuracy | 10x |
| Fast Focus Diopter | Yes, -2 to +2 |
| Turret Style | Push/Pull Locking Turrets with Zero Reset |
| Length | 10.91" |
| Weight | 20.36 oz |
| Waterproof Rating | IPX7 |
| Impact Resistance | 1,100 G Forces |

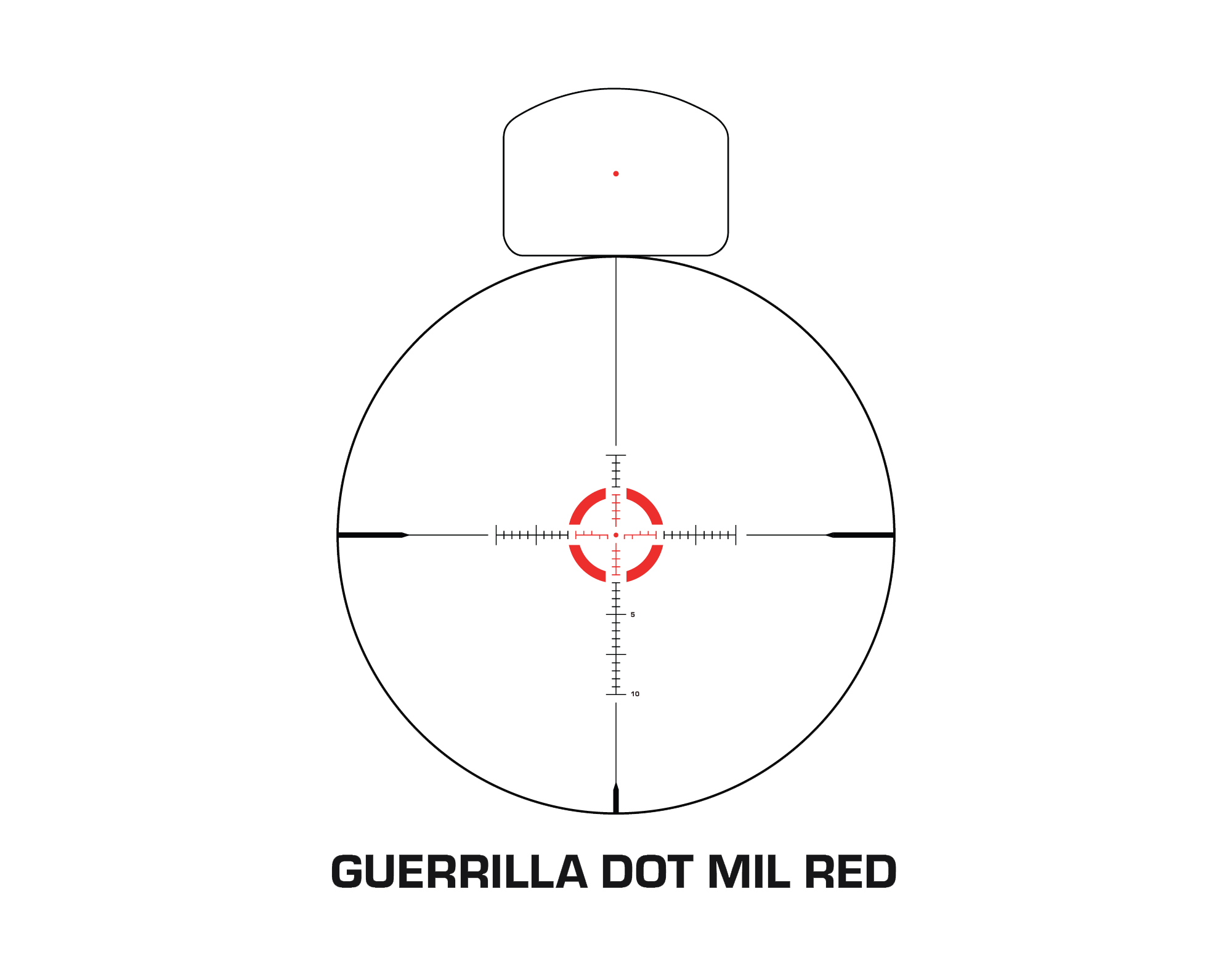

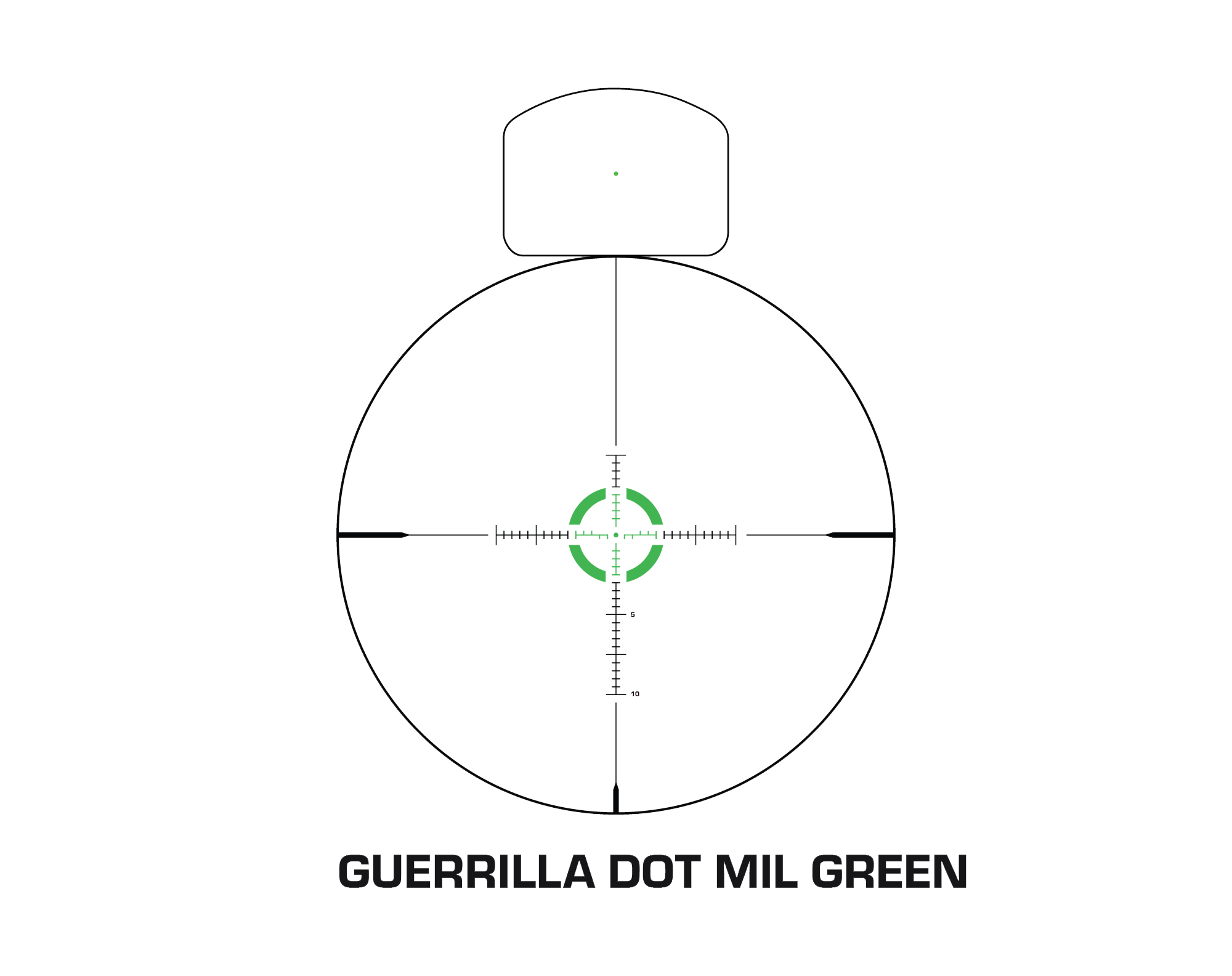

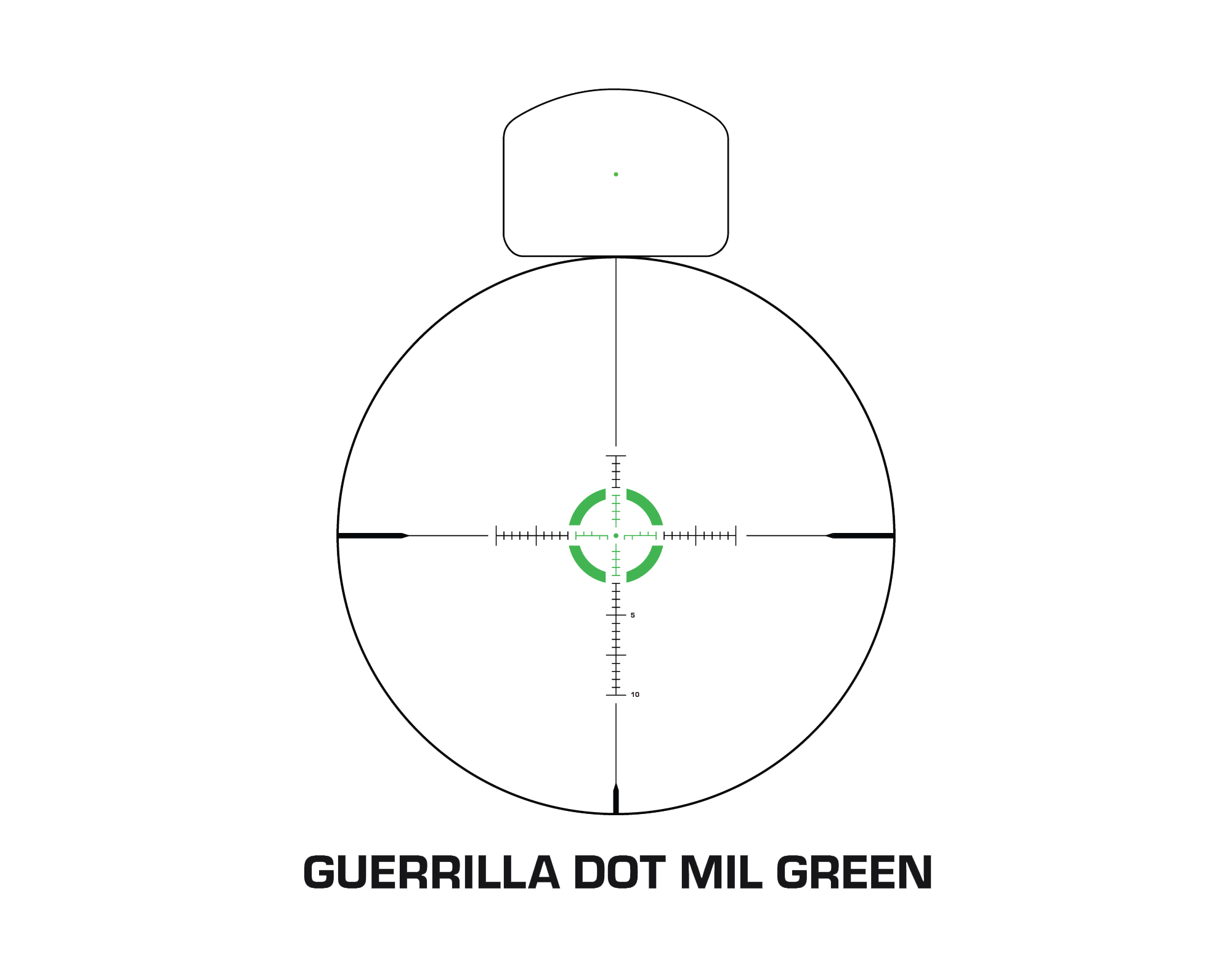

Choose Your Reticle
Available Reticles
GUERILLA DOT BDC LONG
The Guerrilla Dot BDC Long is highly versatile, capable of delivering rapid target acquisition at true 1x magnification, while also providing holdovers for mid- to long-range shots. Bullet drop subtensions are designed to work with the optic at its highest magnification. The center dot and its corresponding zeros can be used at any magnification.
CALIBER CONSIDERATIONS
Guerrilla Dot BDC Long was designed primarily for the AR platform using the 5.56 NATO trajectory, based on the following ballistics parameters:
- Lake City/Federal 5.56 NATO
- 55gr FMJ/XM193
- Ballistic Coefficient: .243
- Muzzle Velocity: 3101
- Barrel Length: 16”1
The reticle can also be used with 7.62 NATO / .308 Win. Based on the following:
- Hornady .308 WIN 155gr
- Ballistic Coefficient: .435
- Muzzle Velocity: 2,865 fps
BULLET DROP COMPENSATION
For 5.56 NATO 55gr FMJ; Based on 50/200 yard zero
BULLET DROP COMPENSATION
For .308 WIN / 7.62 NATO 155gr FMJ; Based on 50/200 yard zero
RAPID RANGING
The Guerrilla Dot BDC Long reticle can be used to estimate distance to target based upon various reference points.
Package Contents
In the Box
8 Items
- Scope
- Throw Lever
- Wrench for throw lever
- Flip Up Lens Caps
- Scope Cloth
- Battery
- Product Manual
- Reticle Manual
