Best Red Dot for Springfield Hellcat: Complete Buyer's Guide

Every optic-ready Hellcat uses the same optic cut. Springfield markets it as the Springfield Micro footprint, which is a fancy way of saying Shield RMSc pattern. The 3-inch OSP, the Hellcat Pro, the RDP, the Pro Comp, the threaded Pro, and the newer .380: same pocket across the board.

That consistency is a gift. Sig has been reworking the P365 cut for years. Springfield picked a footprint in 2019 and stuck with it.

The catch is that a matching screw pattern does not guarantee an optic will seat. The Hellcat pocket has raised recoil bosses, and some of the most popular micro dots on the market, Holosun's K-series in particular, are not machined to clear them. Those need an adapter plate or a trip to the gunsmith.

The Swampfox Sentinel II is a true RMSc-footprint optic. It drops into the Hellcat cut with no plate and no modification, ships with screws labeled for the Hellcat, and leaves the factory rear sight on the slide as a backup.

The only Hellcat owners who need to stop and think are the ones running a standard (non-OSP) Hellcat. That is a slide-milling or slide-swap conversation, not an optic-selection one.

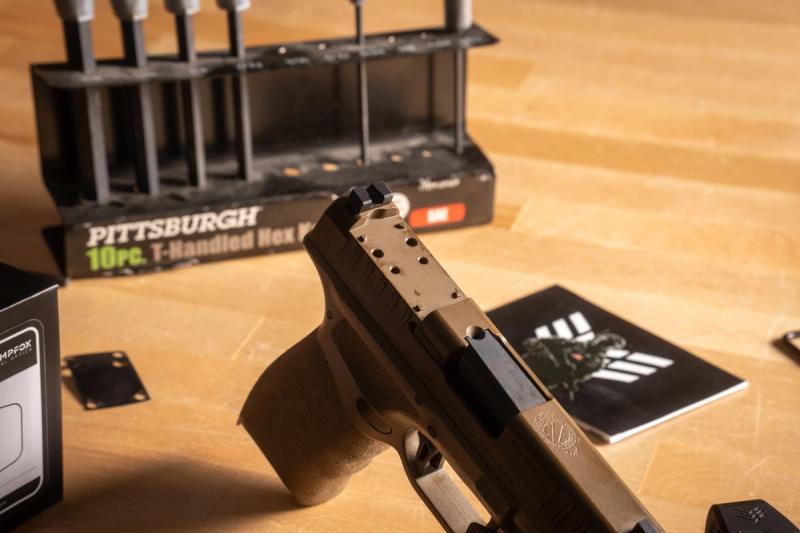

Pull the cover plate on any OSP Hellcat and you will see the pocket: two tapped holes and four raised recoil bosses, two up front and two in back, that a full RMSc optic is machined to accept. The bosses carry recoil into the slide so the screws are not doing all the work.

They are also the reason the Holosun 407K, 507K, and EPS Carry do not drop straight in. Holosun's K-series lines up with the RMSc screw pattern, but the base of the optic is built around the front pair of bosses only. So K-series owners end up in the same spot as Glock 43X MOS owners:

• Buy an adapter plate: It works, but it adds height and another layer of screws. The more you stack under an optic, the less likely your factory irons are to show through the window.
• Modify your slide: Permanent. Direct-mounting a K-series typically means removing the rear bosses, and some setups need the front pair relieved too. You are paying someone to cut away the part of the pocket that carries recoil.

A true RMSc optic sidesteps the whole problem. The Sentinel II has recesses for all four bosses, so it sits flush in the pocket the way Springfield intended.

Watch Your Screw Length

The Hellcat takes M4x0.7 optic screws, and length is the part worth slowing down for.

Springfield's manual says a mounting screw should not protrude more than 0.095 inches (2.4mm) below the bottom of the optic. A screw that runs too deep can bottom out in the slide before it clamps the optic down, and an optic that is not clamped tight is going to have a hard time holding zero. The manual also warns against putting Loctite in the slide's threaded holes, since excess can foul the mechanism. Apply it sparingly to the screw threads instead.

The cover plate screws are sized for the cover plate, not an optic, so set them aside.

The Sentinel II gets you most of the way there in the box. It ships with four screw sets, including M4x0.7 x 11mm screws labeled for the Springfield Hellcat. Base thickness and the included waterproof plate both change how far a screw reaches, so check before you torque anything: set the optic on the bench with the plate in place and see how far the screws stand proud of the base. If it is more than 2.4mm, go shorter. The Swampfox Ultimate Red Dot Screw Pack covers the common lengths (and then some) if you need to step down a size.

A Note on the Comp Guns

The RDP and Pro Comp vent gas upward to keep the muzzle down. That gas carries carbon, and the front lens of your optic is right in its path. It is a cleaning chore, not a problem. After a high round count range day, the front glass will need a wipe. The Sentinel II's lens is recessed into the hood, which helps keep the glass protected from bumps and racking, but it won't stop carbon buildup entirely.

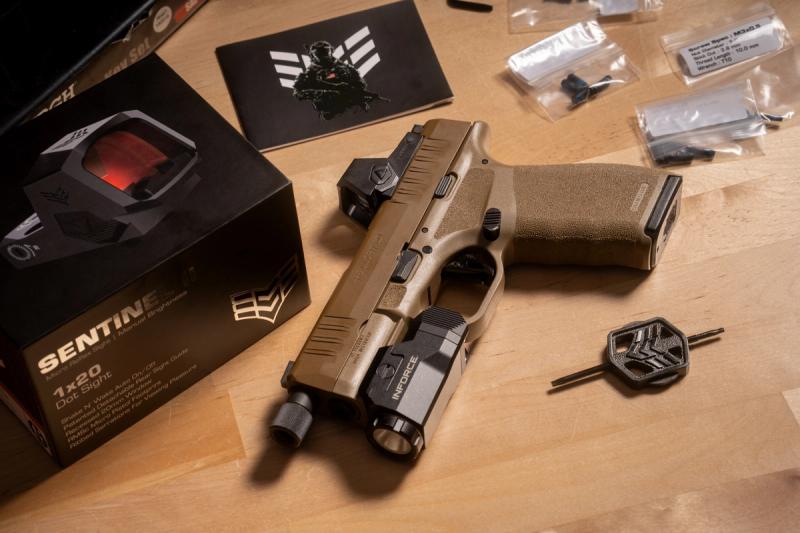

The Sentinel II runs the full RMSc footprint. It drops into any OSP Hellcat without plates, stays tight to the slide, and leaves your factory irons on the gun.

1. Your Irons Stay on the Gun

On every OSP Hellcat, the rear sight lives in its own dovetail on the slide, separate from the cover plate. Pull the plate to mount an optic and your rear sight stays where it is. That is a cleaner setup than some competitors offer, where the rear sight comes off with the plate.

Whether the irons line up through the window is a separate question. Springfield's U-Dot sights were sized with low-deck optics in mind, and the Sentinel II raises its objective lens forward of the main deck to get you that 20mm window. With factory-height sights, expect the front sight to show low in the window as an emergency reference rather than a full co-witness. If you want the irons sitting right under the dot, a set of taller optic-height sights is the way to get there.

Either way, you have a plan B. Battery dies, LED quits, lens gets fogged with whatever the parking lot threw at it: you still have something to align on. Transition and keep working.

The Sentinel II also comes with a removable rear sight guide for pistols that lose their rear sight when the cover plate comes off. The Hellcat does not have that problem, so you can leave it off.

2. Keeps the Hellcat Small

The Hellcat's whole selling point is capacity in a package that disappears under a T-shirt. A plate stack makes the gun taller and more likely to print. The Sentinel II stays tight to the slide at 1.07 inches tall and under an ounce, which keeps the gun as slim as Springfield built it.

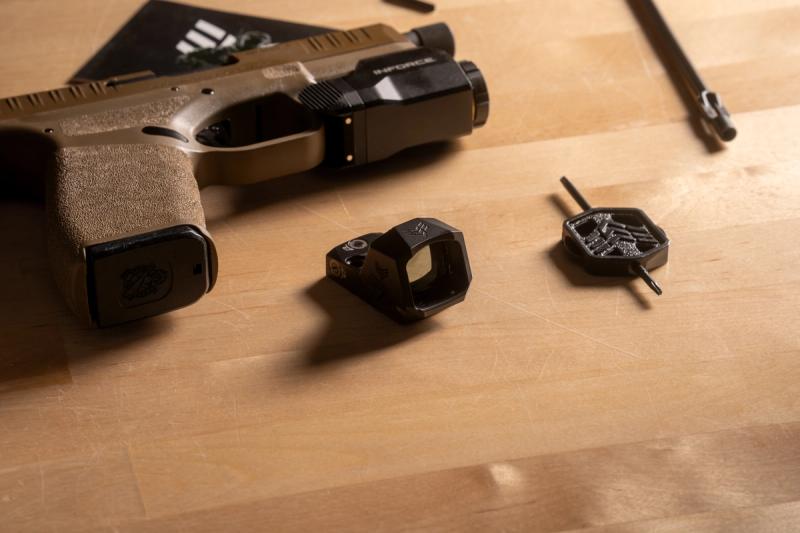

3. Sentinel II Specs

• 3 MOA dot, available in red or green.
• 20mm window, a step up from the first-generation Sentinel's 16mm.
• 10 manual brightness settings, including 2 night-vision compatible levels. No auto-brightness; you set it where you want it.
• Up to 50,000-hour battery life on a bottom-loaded CR2032. Swapping it means pulling the optic, so plan to confirm zero afterward.
• Shake 'N Wake. The optic sleeps when the gun sits still and wakes on movement.
• 1 MOA per click windage and elevation, 80 MOA of total travel.
• 7075-T6 aluminum body, 0.99 oz.
• IPX7 waterproof, 1500G shock rated.

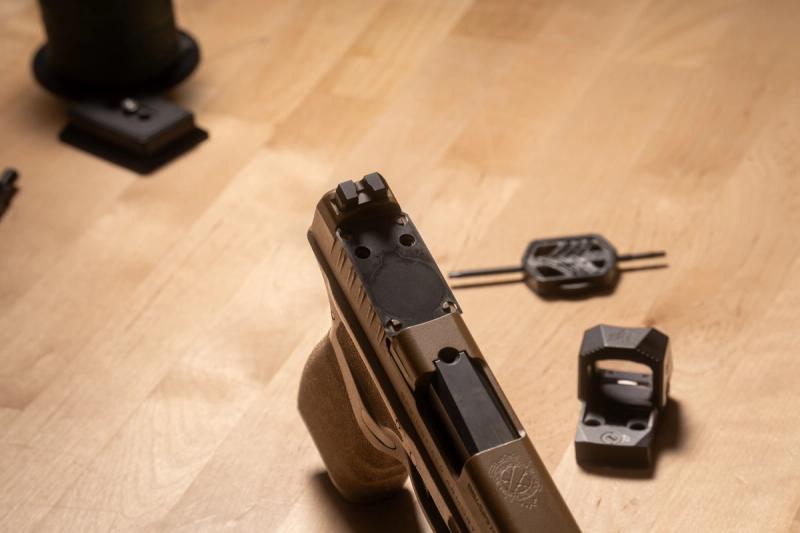

This takes about ten minutes. Have a Torx driver for the cover plate screws and the wrench that comes in the Sentinel II box.

1. Clear the weapon. Remove the magazine and check the chamber, physically and visually. Do this before anything else touches the slide.
2. Remove the cover plate. Two Torx screws hold it in. Keep the plate and screws somewhere you will find them, though you probably will not need them again.
3. Install the battery and waterproof plate. The CR2032 loads from the bottom of the optic, so if it is not already installed, put it in now. Then set one of the included waterproof plates on the underside of the optic.
4. Test fit the Sentinel II. Set it in the pocket. It should sit flat with no rocking. If it rocks, something is likely fouling the bosses. Clean the pocket and try again.
5. Check screw length. Start with the M4x0.7 x 11mm Hellcat screws from the Sentinel II box. With the waterproof plate in place, check how far they protrude below the base of the optic. If it is more than 2.4mm, step down to a shorter M4x0.7 screw.
6. Apply Blue Loctite and torque. A small amount on the screw threads only, not in the slide's holes. Torque to no more than 15 in-lbs. Dry screws tend to back out on a gun this light, and Loctite is cheaper than a lost zero.
7. Zero at the range. The Sentinel II adjusts in 1 MOA clicks. A 15-yard zero is a common choice on a carry gun this size and keeps point of impact close to point of aim at realistic defensive distances.

The Hellcat is a serious carry gun, and Springfield made the optic question easy by never changing the cut. Every OSP Hellcat takes a true RMSc optic. Skip the plate, skip the grinding, and keep your irons on the gun.

The Swampfox Sentinel II does that. It mounts direct on every OSP Hellcat from the 3-inch .380 to the Pro Comp, leaves the factory sights on the slide as a backup, ships with screws labeled for the Hellcat, and runs up to 50,000 hours on a battery. Mount it and carry it.
