LPVO With a Red Dot: Why Not Both (New Swampfox American Warrior Bundle)

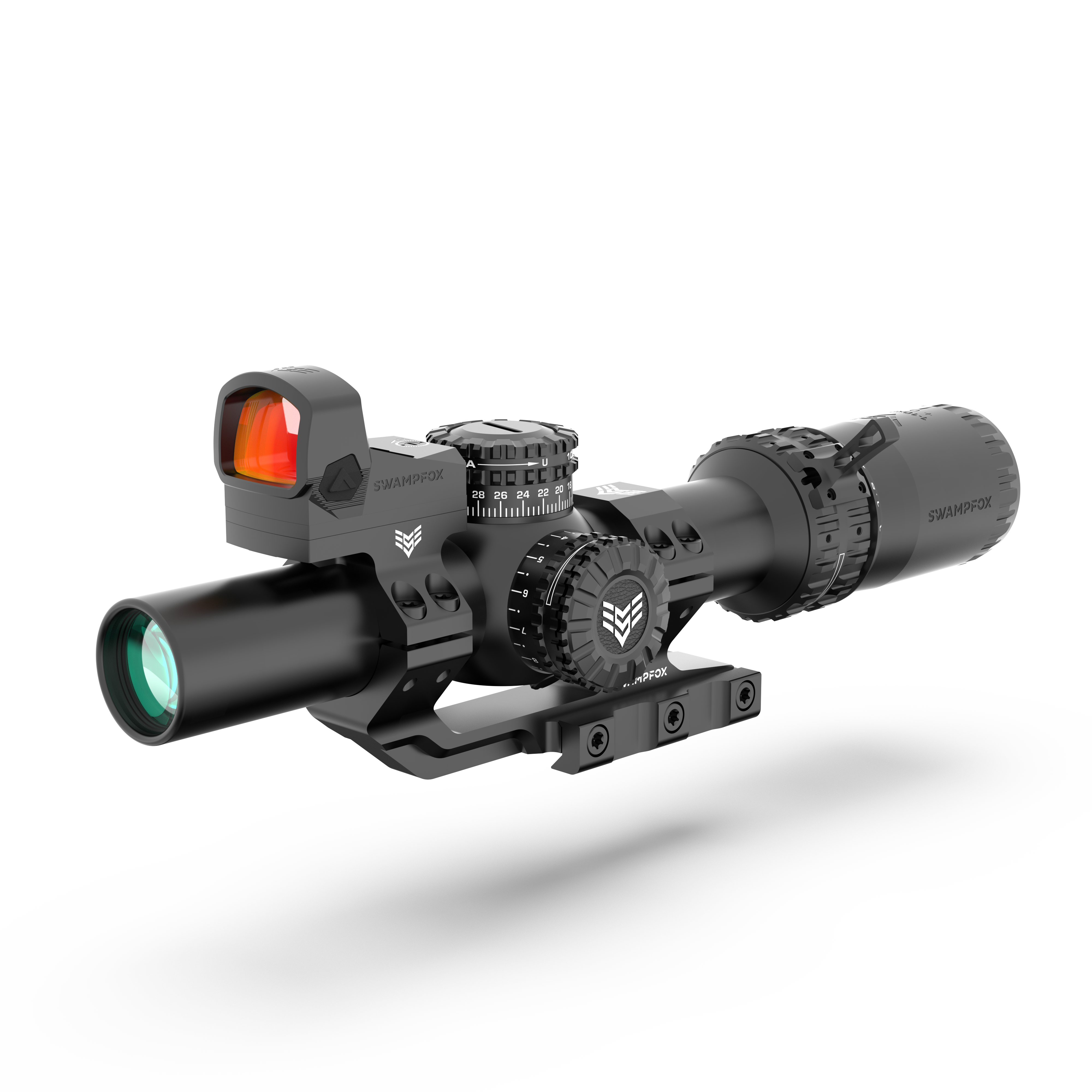

This isn't a parts-bin pairing. The one-piece cantilever mount was purpose built to carry both optics, with an integrated RMR top ring machined right into it to hold the Liberty II at the correct height above the Arrowhead's elevation turret. It's not an add-on bracket you're hoping stays put. It's a single, rigid piece of hardware doing one job.

That matters because two optics stacked on one mount is only useful if the whole stack holds zero. The one-piece 30mm cantilever is machined from 6061-T6 aluminum at a 1.5-inch center height that sits right for AR-pattern rifles. Fasteners get a thread-locking Nylok patch so nothing backs out under recoil.

Arrowhead is our flagship LPVO series, and the 1-10x24 is its most versatile reach. Advanced optical engineering delivers a wide field of view and a bright sight picture, and the lenses are treated with anti-reflection, anti-fog, anti-scratch, and hydrophobic coatings so rough weather and rough handling are part of the job, not a reason to baby it.

It's a second focal plane (SFP) scope, which keeps the reticle a consistent size across the entire magnification range. You get a familiar sight picture and faster follow-up shots whether you're at 1x or cranked to 10x. Illumination comes from dual LED emitters running 12 daylight-bright settings, with intermittent off positions between them to save battery, plus two low settings that are compatible with night vision devices.

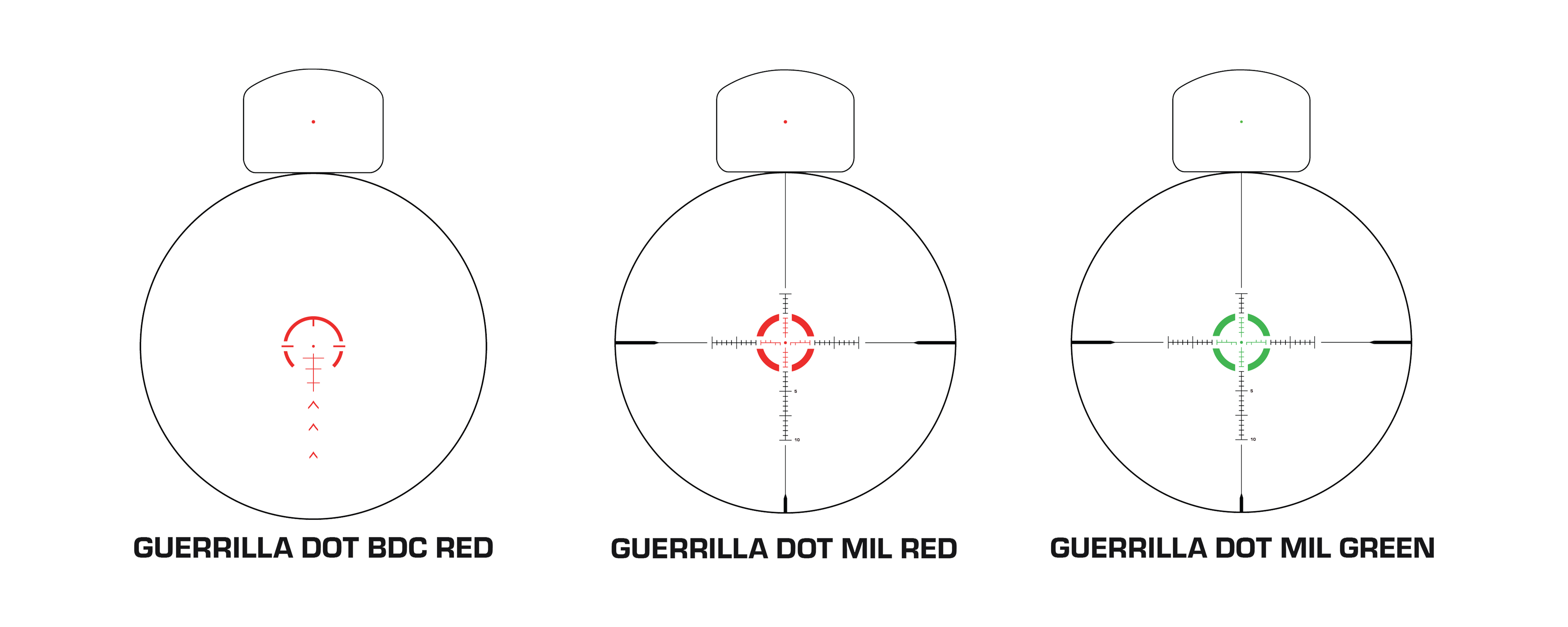

The turrets are where the Arrowhead earns its keep in the field. The push/pull locking design lets you make fast, tool-free adjustments and then lock them down against an accidental bump, at 0.5 MOA or 0.1 MIL per click depending on your reticle. Set your zero, pull the locking bolt, reset the turret to your new zero, reattach the bolt, and you're back to true.

The Liberty II is the close-range answer sitting up top. It runs a 24mm window and a modern, low-profile body on a universal RMR footprint, which is exactly what lets it drop cleanly onto the mount's integrated RMR top ring. Ten manual illumination settings keep the 3 MOA dot sharp from a dim room to glaring midday sun.

It's also built to be ready without you thinking about it. Swampfox Shake 'N Wake powers the emitter down after 225 seconds of inactivity, then wakes the dot to its last brightness setting the moment it senses motion, so the dot's there when you snap up to it. The body is machined from 7075-T6 aluminum to shrug off impacts, and with a CR1632 battery good for up to 50,000 hours, you're not babysitting a power switch.

Every Swampfox optic ships with a Limited Lifetime Warranty for robust protection against manufacturing and material defects. We cover LED emitters and electronics for 10 years, with lifetime coverage on all other components. If your optic ever takes performance-compromising damage, we're committed to repairing or replacing it. The warranty does not cover intentional or cosmetic damage, or optics that are lost or stolen.

Is there any point to running an LPVO with a red dot?

Yes, and it comes down to speed. An LPVO is deadly accurate at distance, but even a true 1x model is a touch slower to pick up than a dedicated red dot when a target is close and moving. A second red dot gives you an instant, both-eyes-open aiming point for that close work, so one rifle covers bad-breath distance and a long shot without swapping optics. The American Warrior Bundle builds that setup for you: an Arrowhead 1-10 LPVO with a Liberty II 1x dot on top.

Red dot on top or offset at 45 degrees, which is better?

Both work; they just get there differently. An offset dot sits canted off the side of the scope and you roll the rifle onto it, which keeps the top of your scope clear (that's the Rebel Offset and Hostile Engagement Mount approach). A top-mounted dot sits directly above the scope, square to the bore, so you snap your eyes up instead of tilting the gun. Top-mount tends to be faster and more intuitive under stress; offset is a solid call if you want to keep your rifle's centerline clear. The American Warrior Bundle runs the top-mounted approach.

What mount do you need to put a red dot on an LPVO?

You need a mount with a dedicated surface for the dot, either an offset mount or a cantilever with a top ring cut for a red dot footprint. Guessing at spacer stacks and mismatched clamps is where most DIY setups go sideways. The American Warrior Bundle skips that entirely: its purpose-built cantilever mount has an integrated RMR top ring machined in, with the Liberty II dot already configured at the perfect height.
